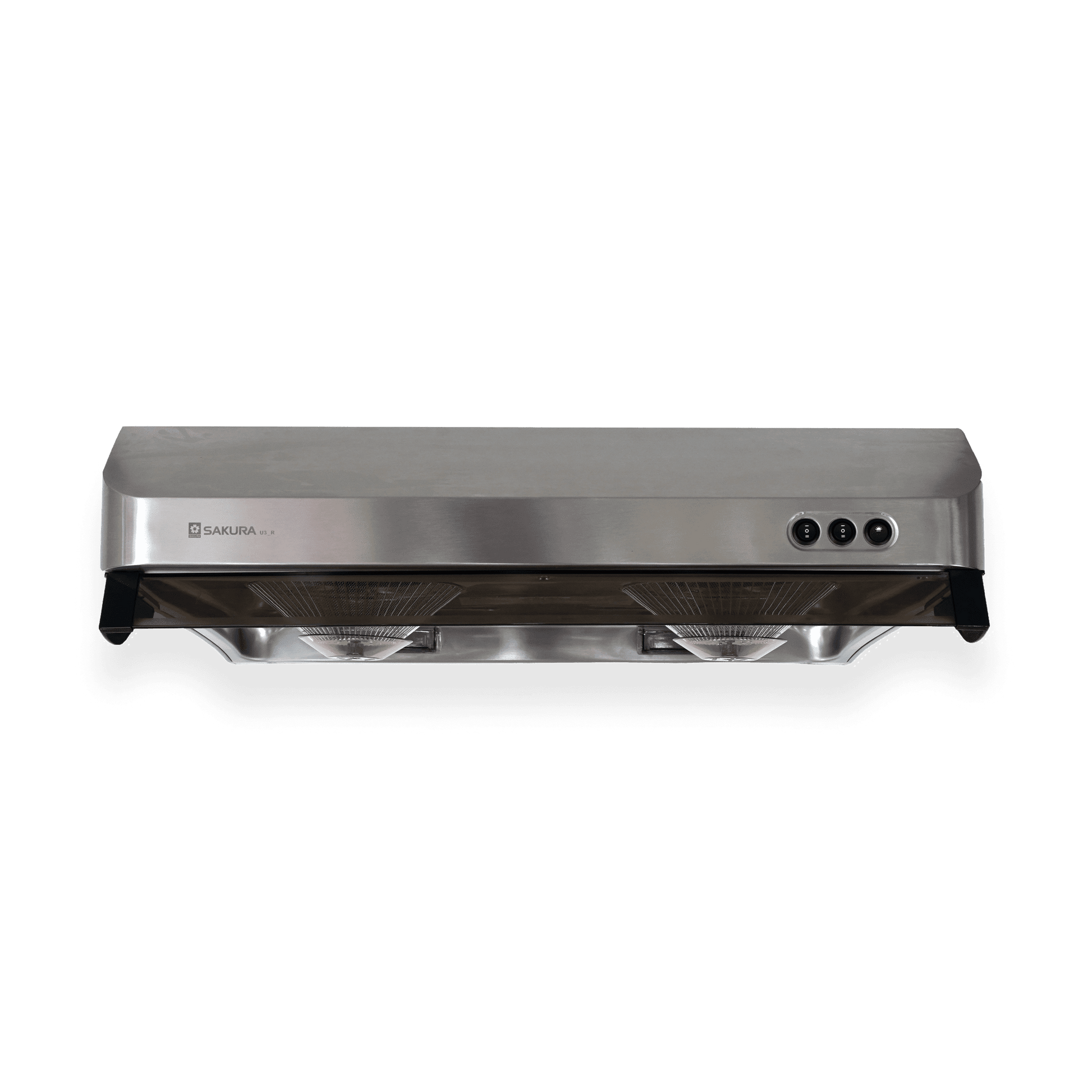

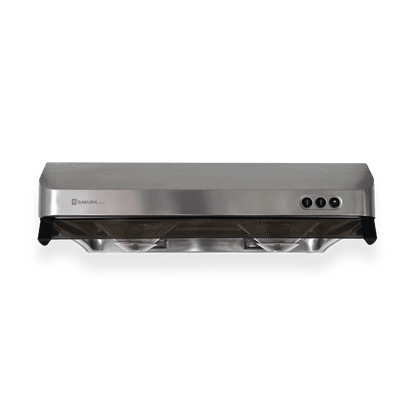

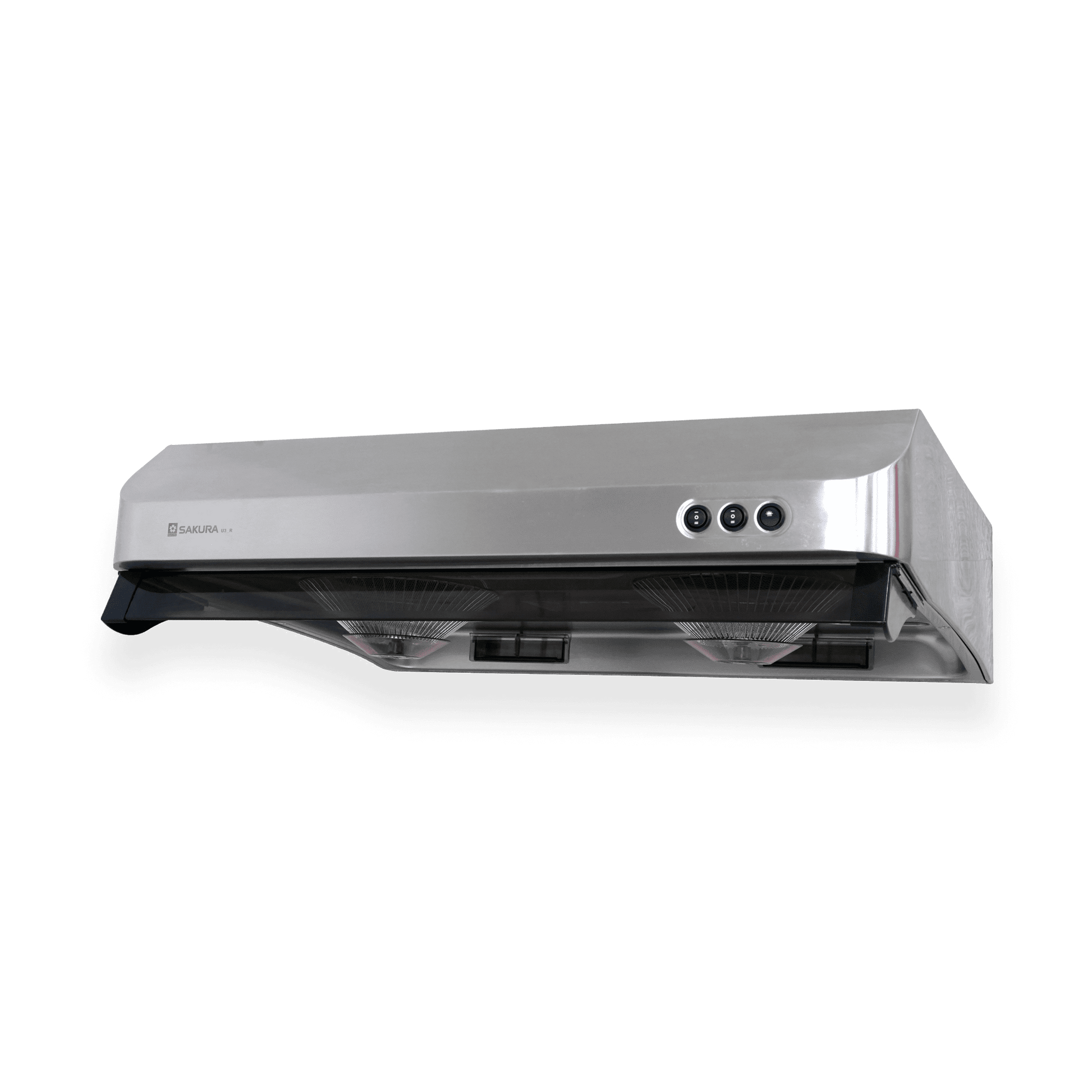

Sakura U3R 30" Range Hood - Under Cabinet

• Made in Taiwan
• Max 700 CFM

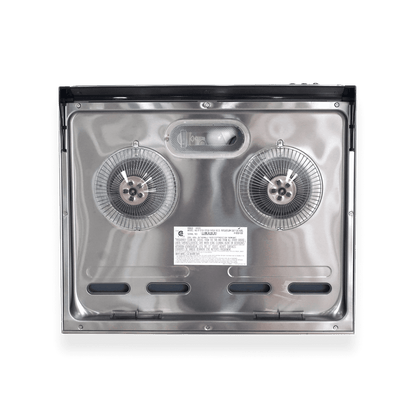

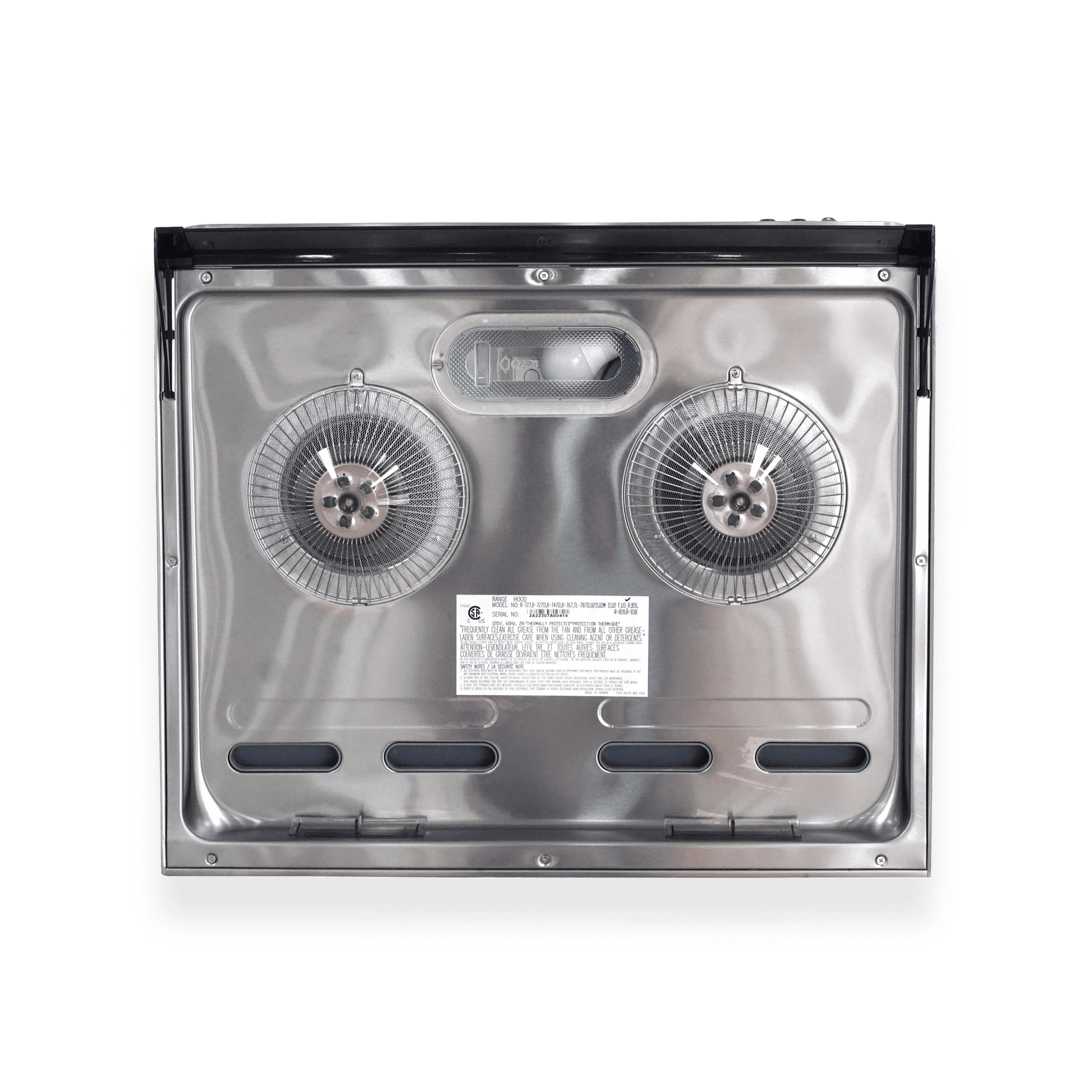

• The fans are 14" away from the wall and are right above the stove's front burners for the most direct ventilation
• Additional four vent openings in rear of hood quickly exhaust steam
• Two powerful centrifugal heavy-duty motors and dual turbo blow wheels revolve in opposite directions to reduce noise and increase suction power
• Patented dishwasher safe removable front and rear oil collectors
• Replaceable patented grease trapping aluminum filter system
• Front smoke cover prevent smoke and steam from escaping
• Round rocker switch with 2-speed control
• Individual light control switch

30" Model - 29.7" W x 25" D X 7.1" H

Net Weight 13.7kg

Gross Weight 17.7kg

Motor: Twin AC Motors

Filter: Aluminum Mesh Filter

Duct Size: 6"

Illumination: 14W light bulb

Switch Type: Rocker Switch

Speed: 2 speeds

Noise level: 2 - 4 Sones

CFM: 350 - 700

Power Consumption: 190W

Voltage: 120V~60Hz

Safety Certificate: CSA

Origin: Made in Taiwan

Step 1: Measuring the duct size

Sakura range hoods require a duct size of 6” or larger round opening.

Step 2: Measuring the distance between range hood and countertop

From the bottom of the cabinet, or the top of the range hood, to the countertop.

Distance Requirement from top of hood to the counter top: Gas stove 34", Electric stove 32"

One Year Parts and Five-Year Motor Warranty

One Happy Kitchen is offering five years limited warranty on range hood products’ motors. from your purchase date, one (1) year warranty on all range hood products and parts and five (5) years limited warranty on motors of One Happy Kitchen range hood products

User manual (English)
