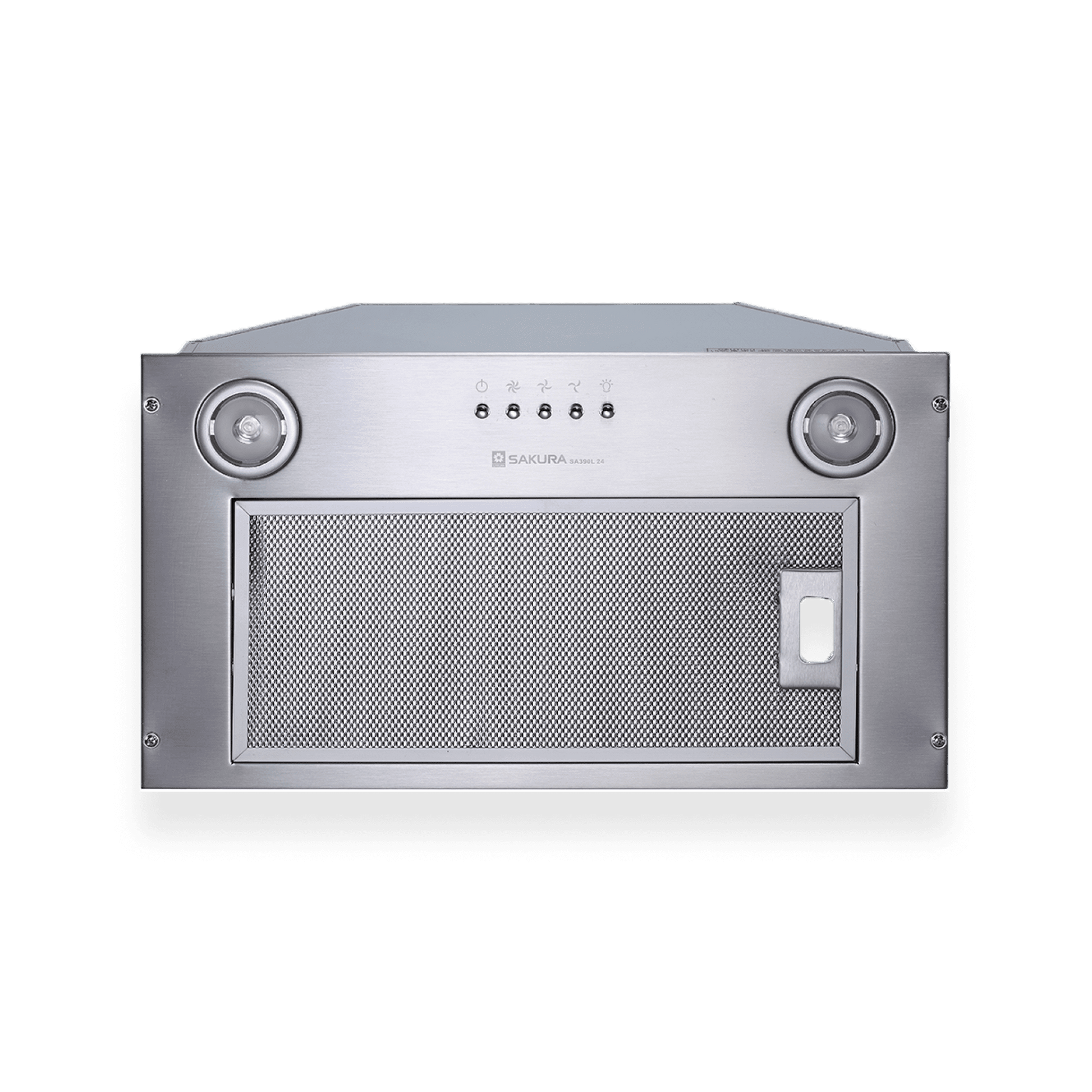

Sakura SA-390L 24" / 30" Range Hood - Built In

• Made in Taiwan
• 450 CFM extraction for removing, smoke, steam, odors and bacteria
• 3 layers of aluminum grease filter system, detachable and dishwasher safe
• Operates with a quiet sound level less than 62dB
• 2 LED Lights
• Push button control 3-speed control
• All parts are made at Sakura Taiwan with excellent quality control.

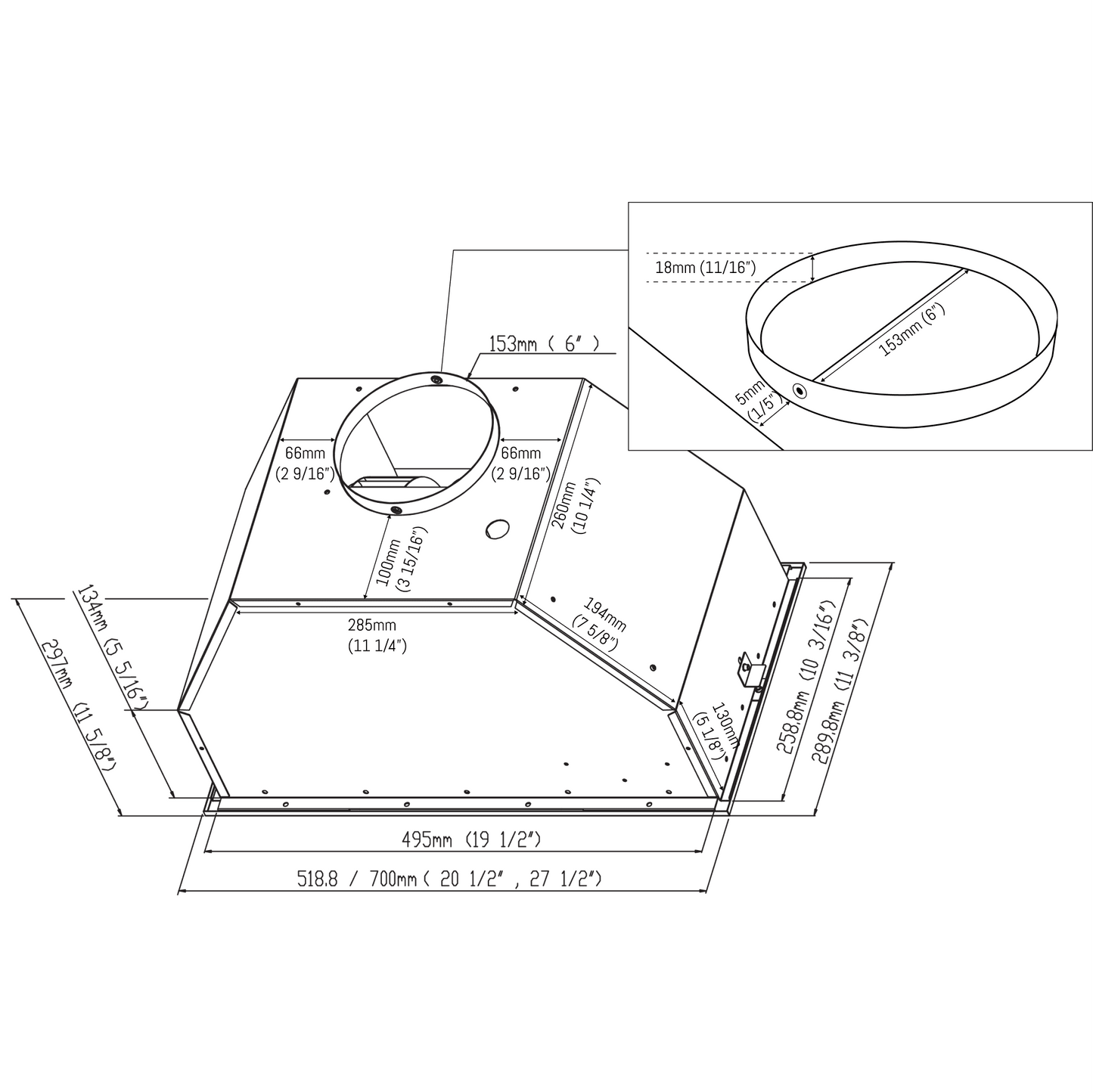

24" Model - 20.5" W x 11.5" D x 10.1" H

30" Model - 27.6" W x 11.5" D x 10.1" H

Net Weight 9kg

Gross Weight 10kg

Motor: Single AC motor

Filter: 3 Layer Aluminum Mesh Filter

Duct Size: 6"

Illumination: LED x2

Switch Type: Metal Push Button

Speed: 3 speeds

Noise level: 2 - 6 Sones

CFM: 250 - 450

Power Consumption: 160W

Voltage: 120V~60Hz

Safety Certificate: CSA

Origin: Made in Taiwan

Step 1: Measuring the duct size

Sakura range hoods require a duct size of 6” or larger round opening.

Step 2: Measuring the distance between range hood and countertop

From the bottom of the cabinet, or the top of the range hood, to the countertop.

Distance Requirement from top of hood to the counter top: Gas stove 26", Electric stove 24"

One Year Parts and Five-Year Motor Warranty

One Happy Kitchen is offering five years limited warranty on range hood products’ motors. from your purchase date, one (1) year warranty on all range hood products and parts and five (5) years limited warranty on motors of One Happy Kitchen range hood products

User manual (English)
