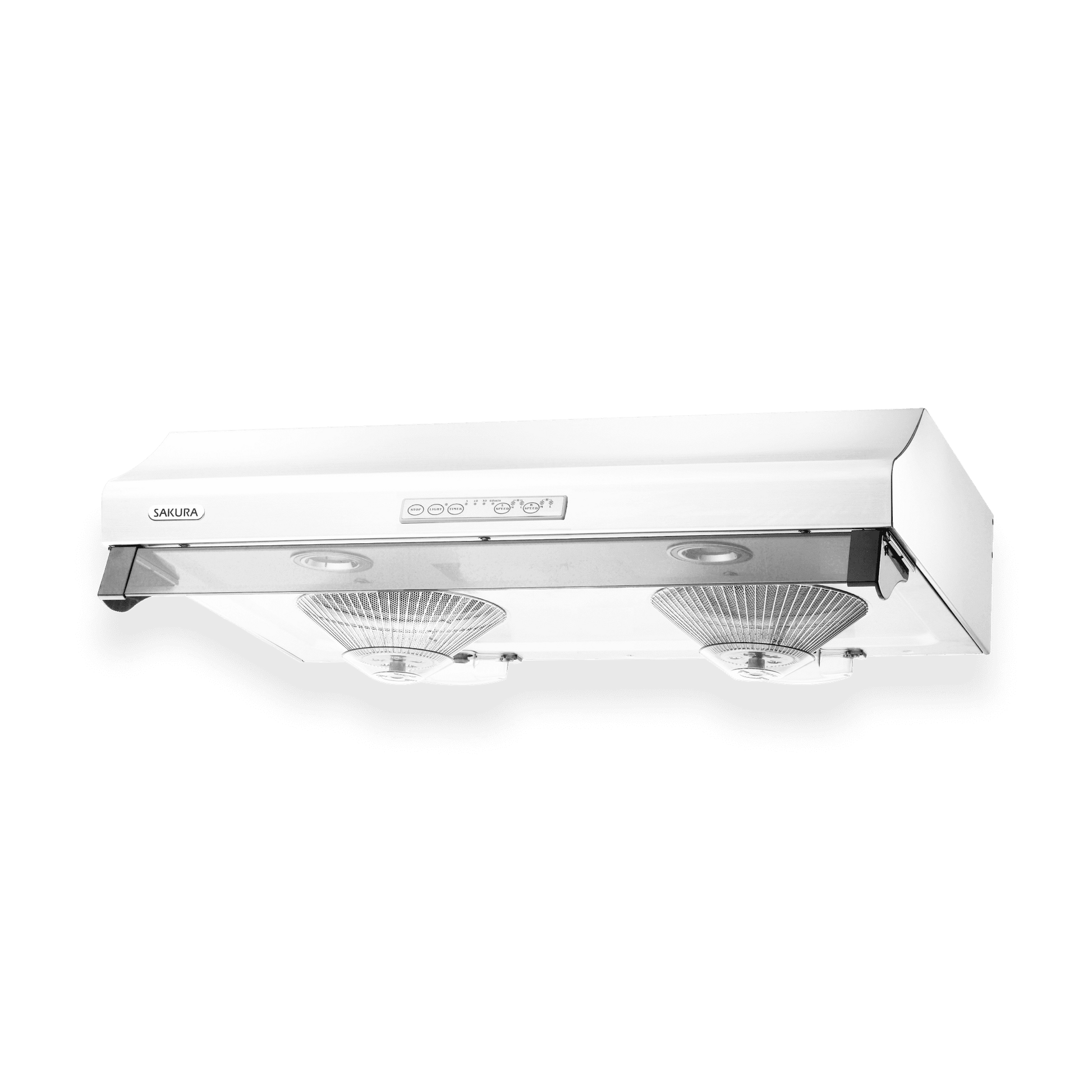

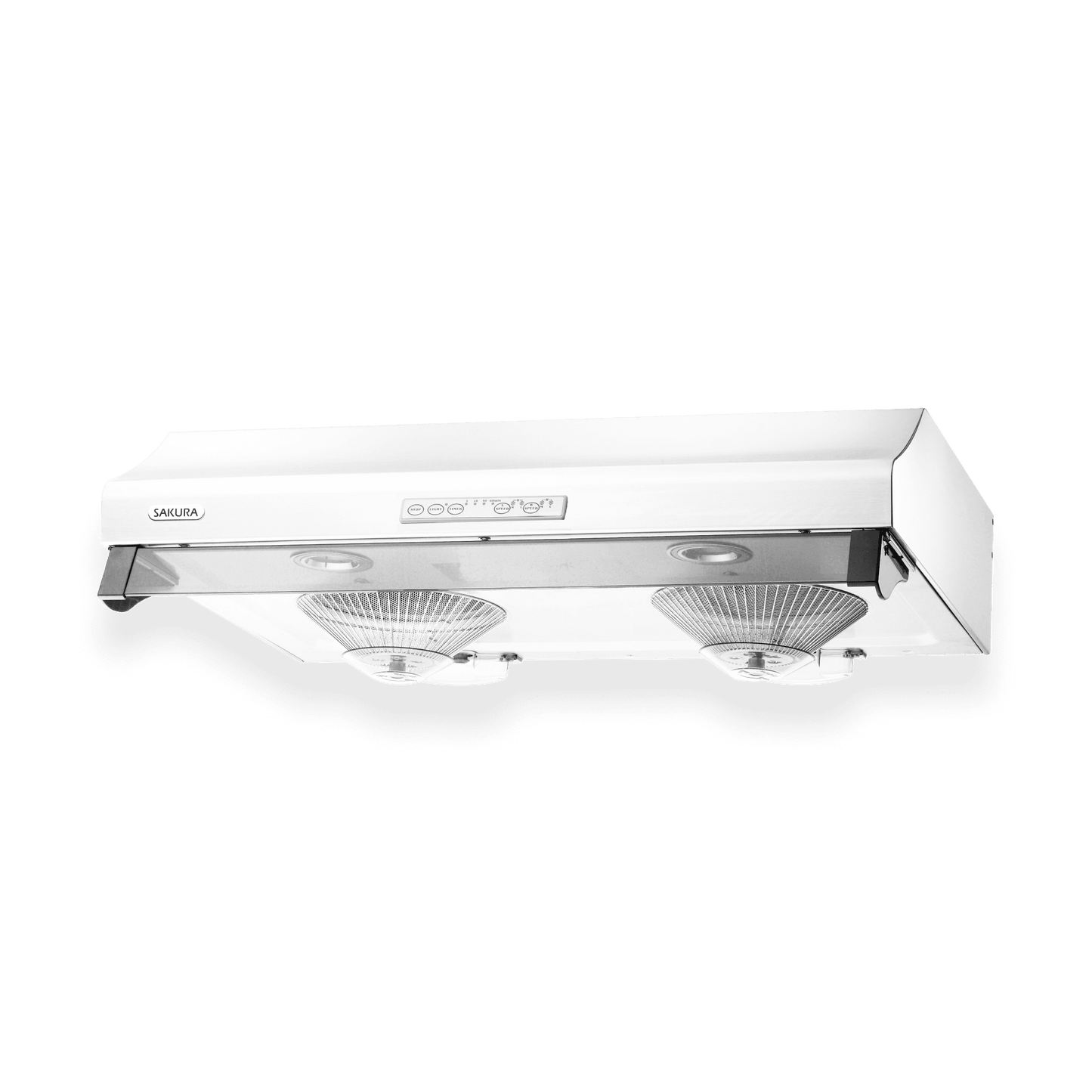

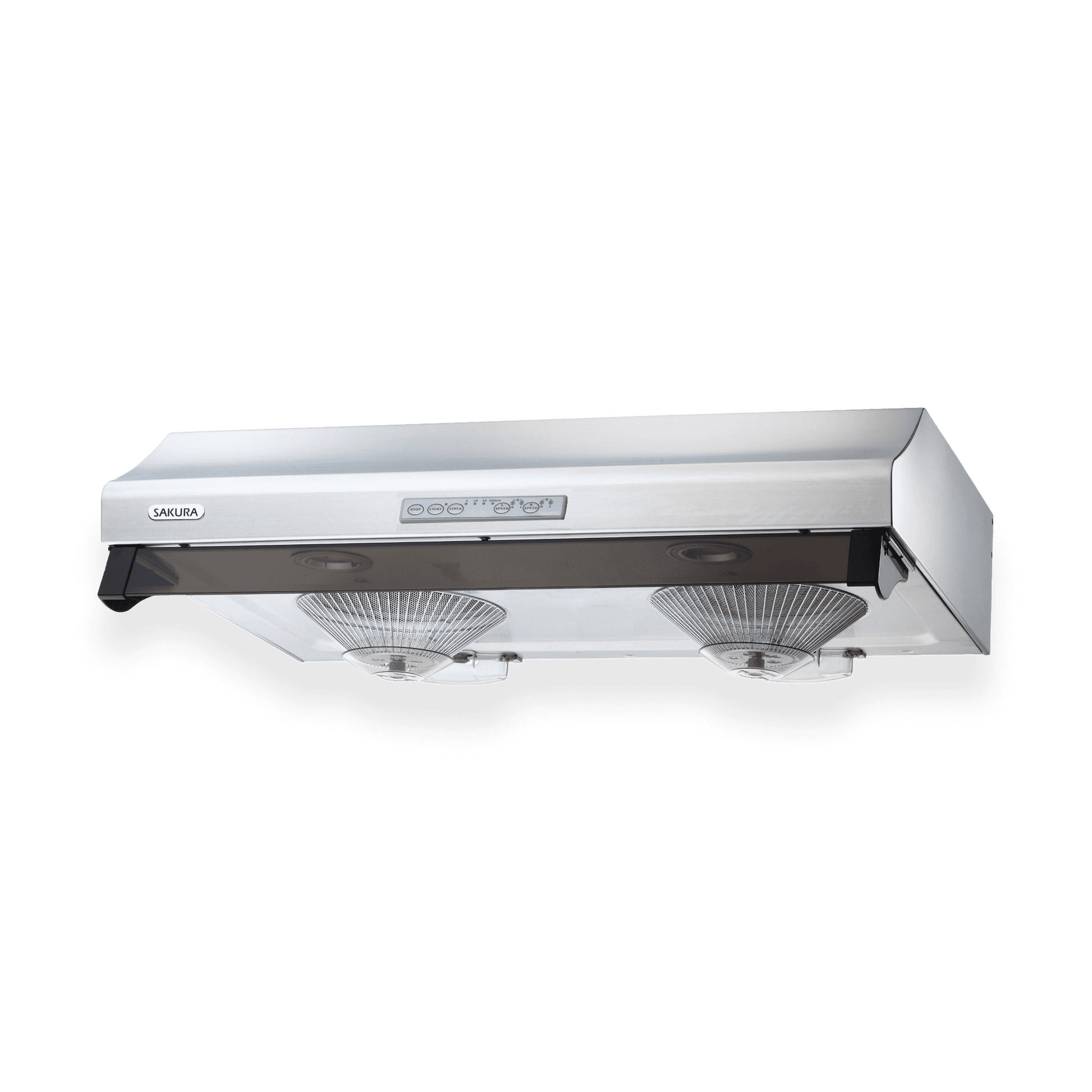

Sakura R-8168M 30" Range Hood - Under Cabinet

• Made in Taiwan
• Max 750CFM
• Sleek and slim design, suitable for modern kitchen
• Two powerful motors that work independently at quiet noise level
• Soft touch switch control with 3 speeds
• Time delay mode for 3, 10, 30, 60 minutes
• Patented Sakura trapping aluminum filters are easy to clean and cheap to replace
• Twin centrifugal Teflon-coated non-stick turbo fans
• Patented dishwasher safe removable front and rear oil collectors
• Front smoke cover prevent smoke and steam from escaping
• Dual LED lighting

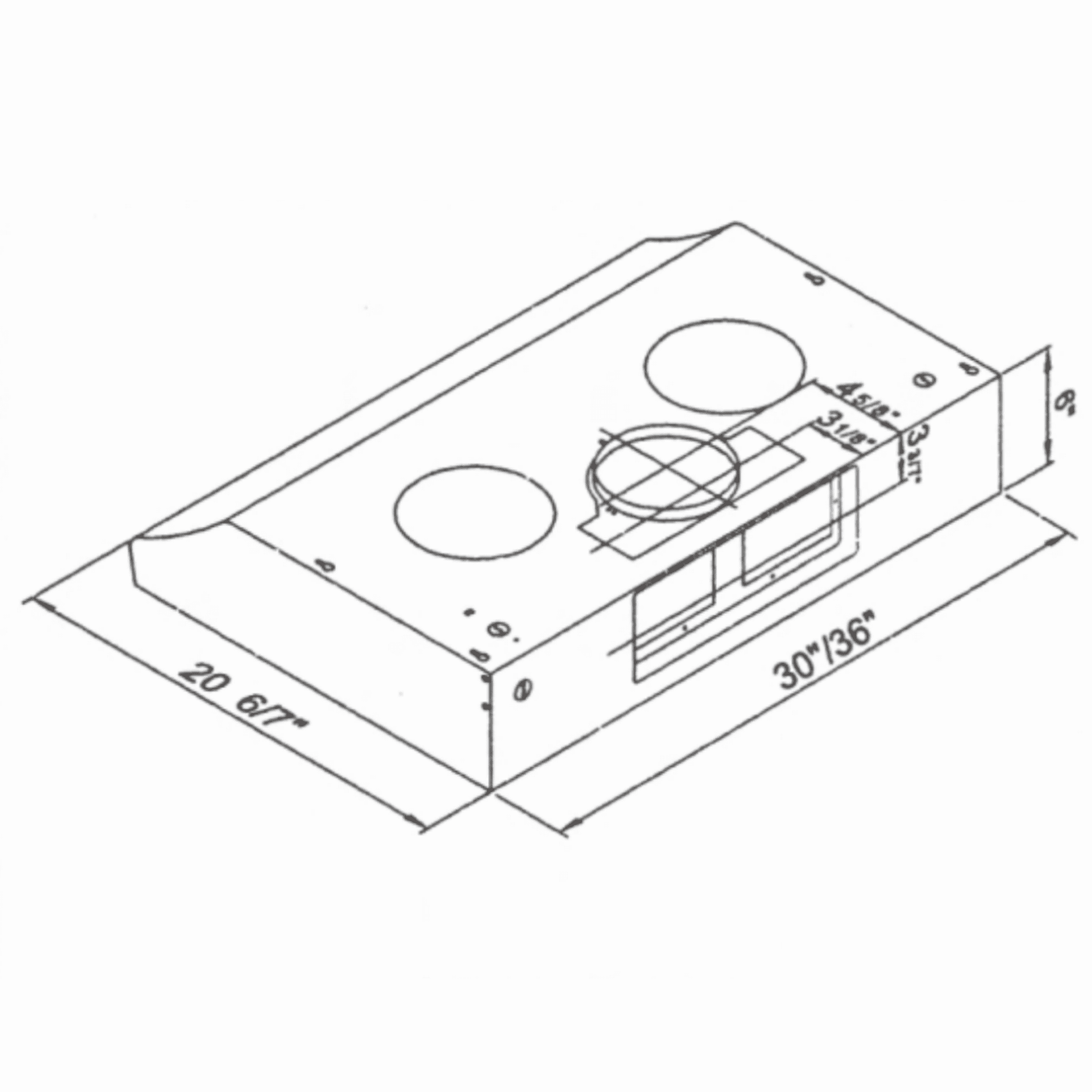

• 3 way ducting: top 6" round opening, top 3 1/8" x 10" rectangular opening, back 3 1/8" x 10' rectangular opening

30" Model - 29.7" W x 21" D x 6" H

Net Weight 13.6kg

Gross Weight 14.5kg

Motor: Twin AC Motors

Filter: Aluminum Mesh Filter

Duct Size: 6" / Rear 3.1" x 10"

Illumination: Dual LED

Switch Type: Soft Touch Switch

Speed: 3 speeds

Noise level: 1.5 - 4 Sones

CFM: 250 - 750

Power Consumption: 240W

Voltage: 120V~60Hz

Safety Certificate: CSA

Origin: Made in Taiwan

Step 1: Measuring the duct size

Sakura range hoods require a duct size of 6” or larger round opening.

Step 2: Measuring the distance between range hood and countertop

From the bottom of the cabinet, or the top of the range hood, to the countertop.

Distance Requirement from top of hood to the counter top: Gas stove 34", Electric stove 30-32"

One Year Parts and Five-Year Motor Warranty

One Happy Kitchen is offering five years limited warranty on range hood products’ motors. from your purchase date, one (1) year warranty on all range hood products and parts and five (5) years limited warranty on motors of One Happy Kitchen range hood products

User manual (English)
