Sakura R-8168F 30" / 36" Range Hood - Under Cabinet

• Made in Taiwan
• Max 750CFM

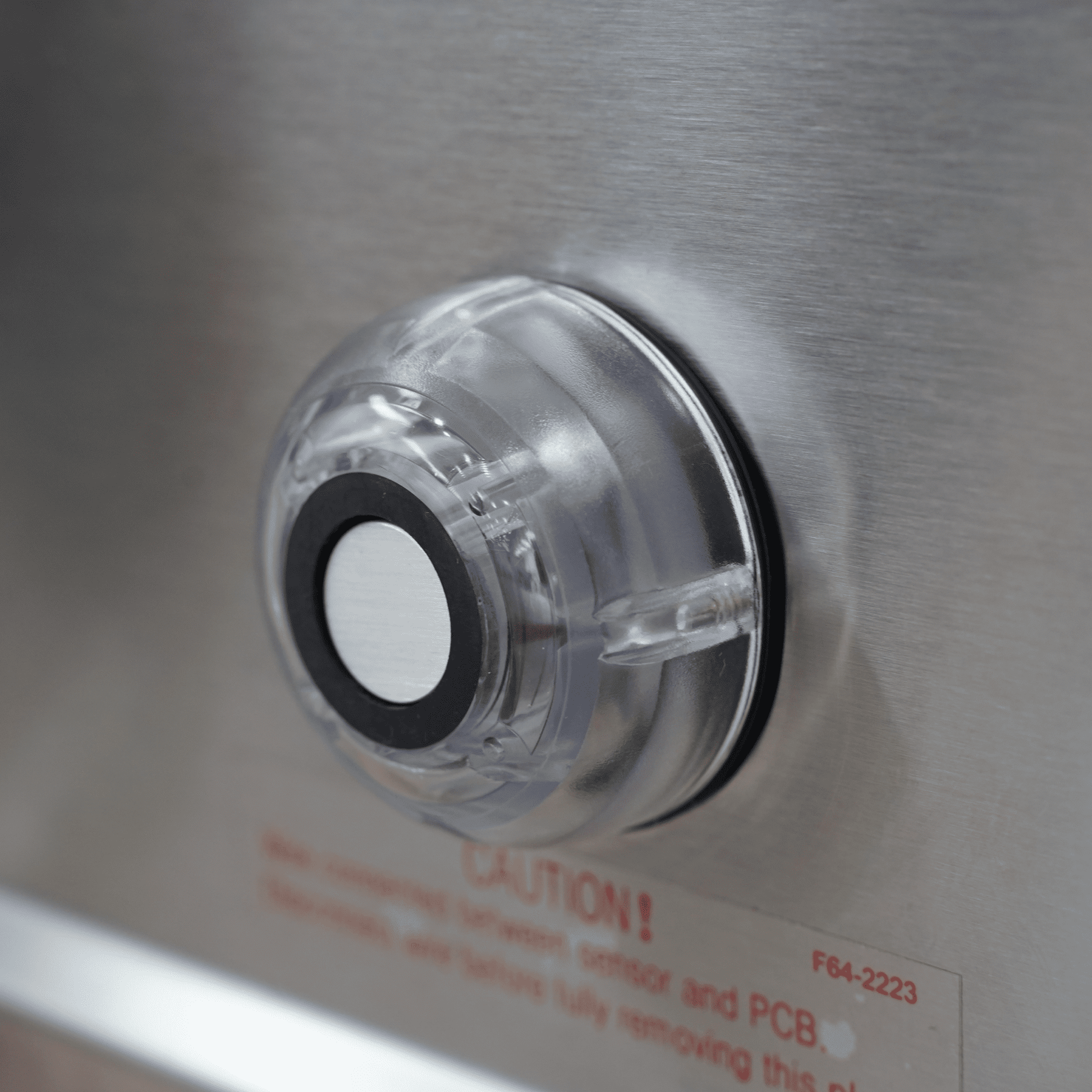

• R8168F has automatic FUZZY logic sensor control, it automatically adjusts fan speeds based on the volume and temperature of the smoke/steam in the air with auto mode
• Air fresh mode: The range hood runs on low to clear remaining smoke and odors after cooking
• Soft touch switch control with 3 speeds and the sensor function gives you additional auto speed
• Patented Sakura trapping aluminum filters are easy to clean and cheap to replace

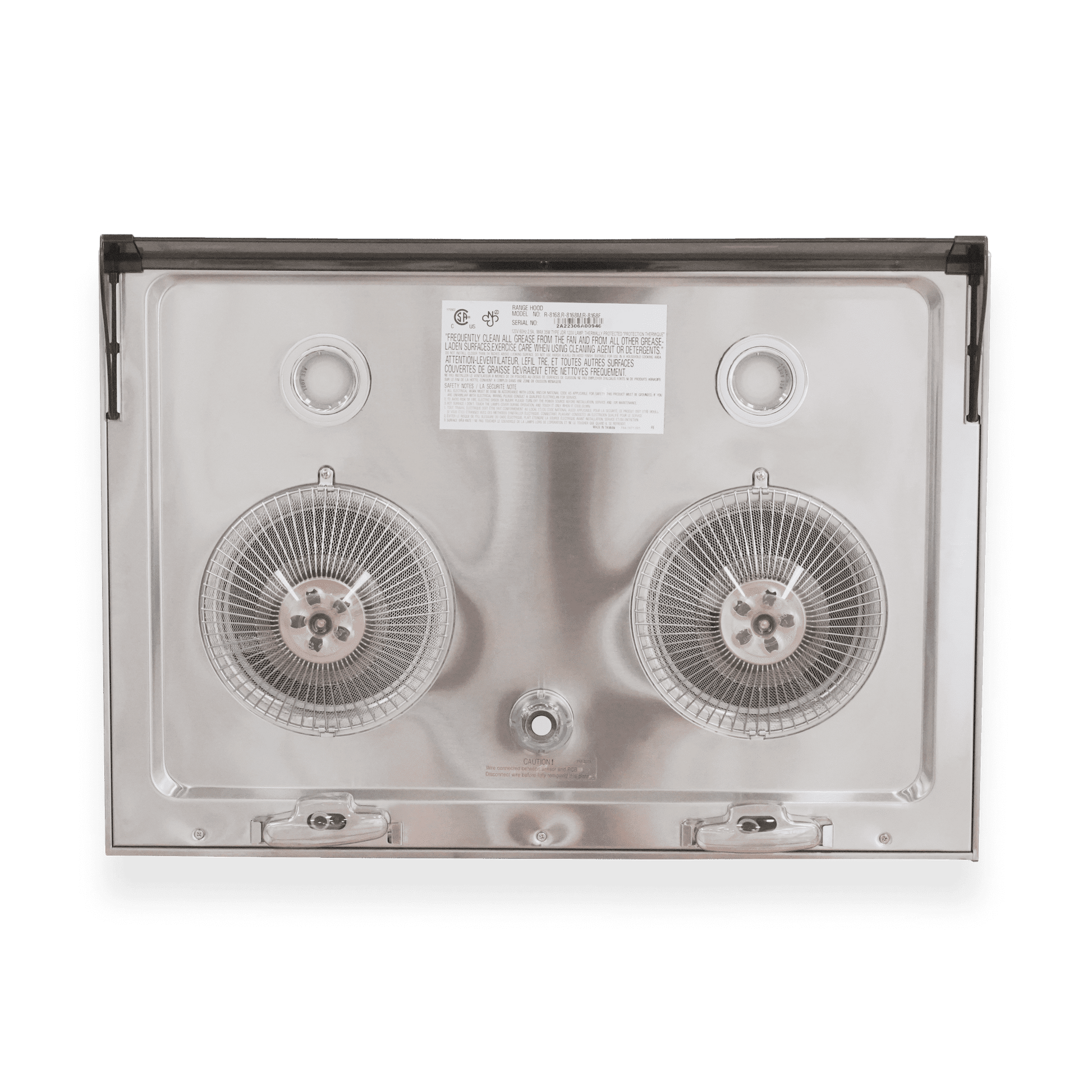

• Twin centrifugal Teflon-coated non-stick turbo fans
• Patented dishwasher safe removable front and rear oil collectors
• Front smoke cover prevent smoke and steam from escaping
• Dual LED lighting

30" Model - 29.7" W x 21" D x 6" H

36" Model - 35.5" W x 21" D x 6" H

Net Weight 13.6-17kg

Gross Weight 14.5-18kg

Motor: Twin AC Motors

Filter: Aluminum Mesh Filter

Duct Size: 6" / Rear 3.1” x 10”

Illumination: 7W LED x 2

Switch Type: Soft Touch Switch

Speed: 3 speeds

Noise level: 1.5 - 4 Sones

CFM: 250 - 750

Power Consumption: 240W

Voltage: 120V~60Hz

Safety Certificate: CSA

Origin: Made in Taiwan

Step 1: Measuring the duct size

Sakura range hoods require a duct size of 6” or larger round opening.

Step 2: Measuring the distance between range hood and countertop

From the bottom of the cabinet, or the top of the range hood, to the countertop.

Distance Requirement from top of hood to the counter top: Gas stove 34", Electric stove 30"

One Year Parts and Five-Year Motor Warranty

One Happy Kitchen is offering five years limited warranty on range hood products’ motors. from your purchase date, one (1) year warranty on all range hood products and parts and five (5) years limited warranty on motors of One Happy Kitchen range hood products

User manual (English)
