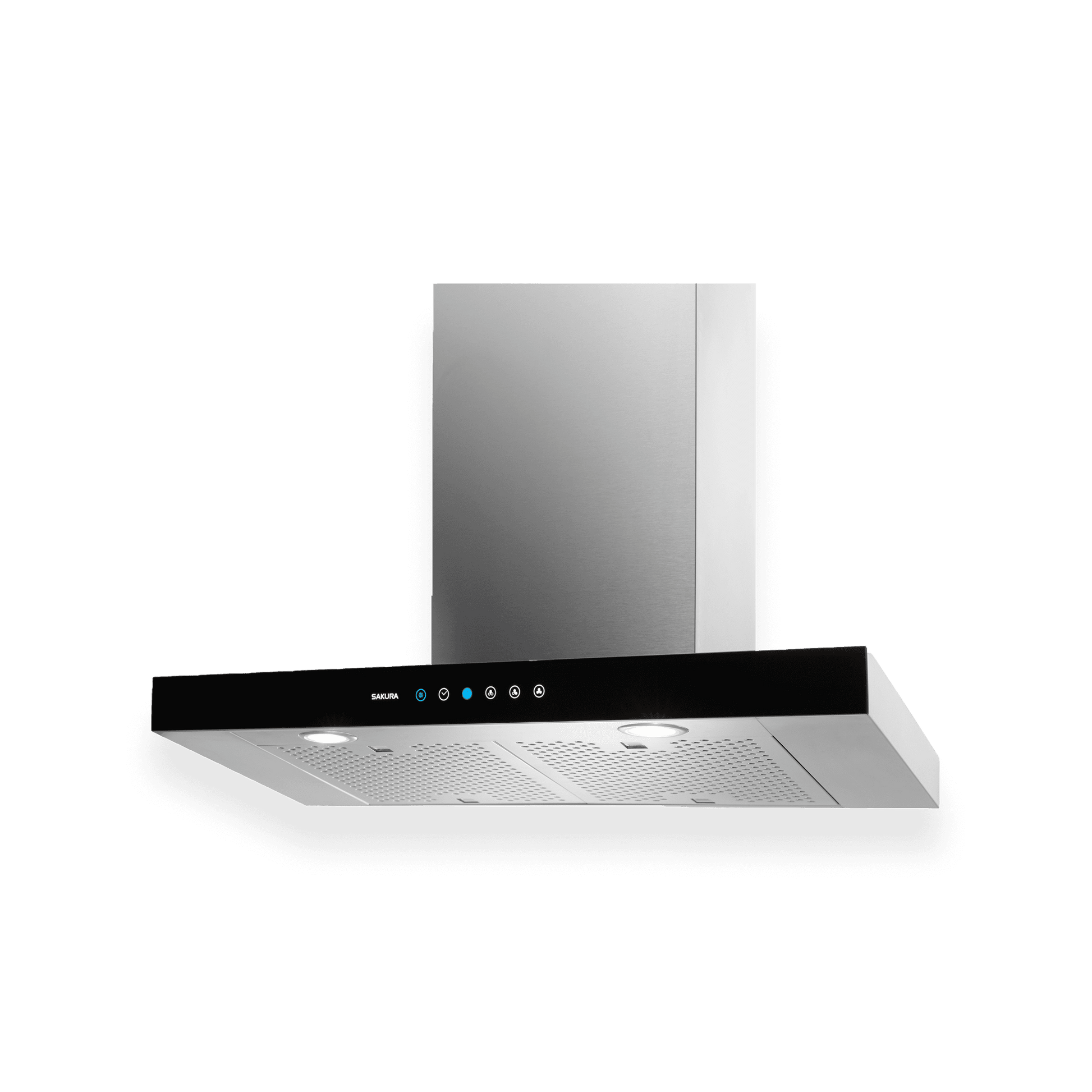

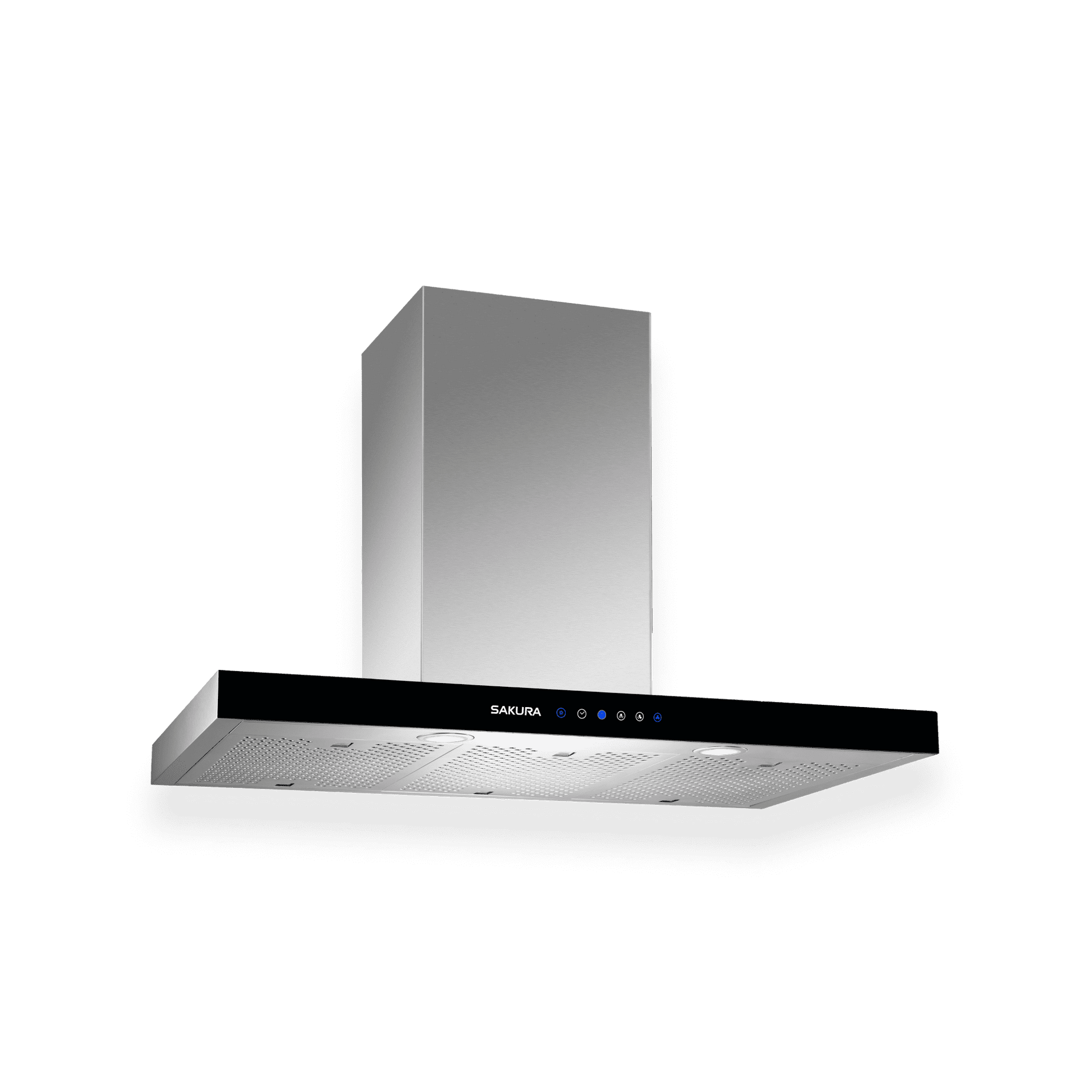

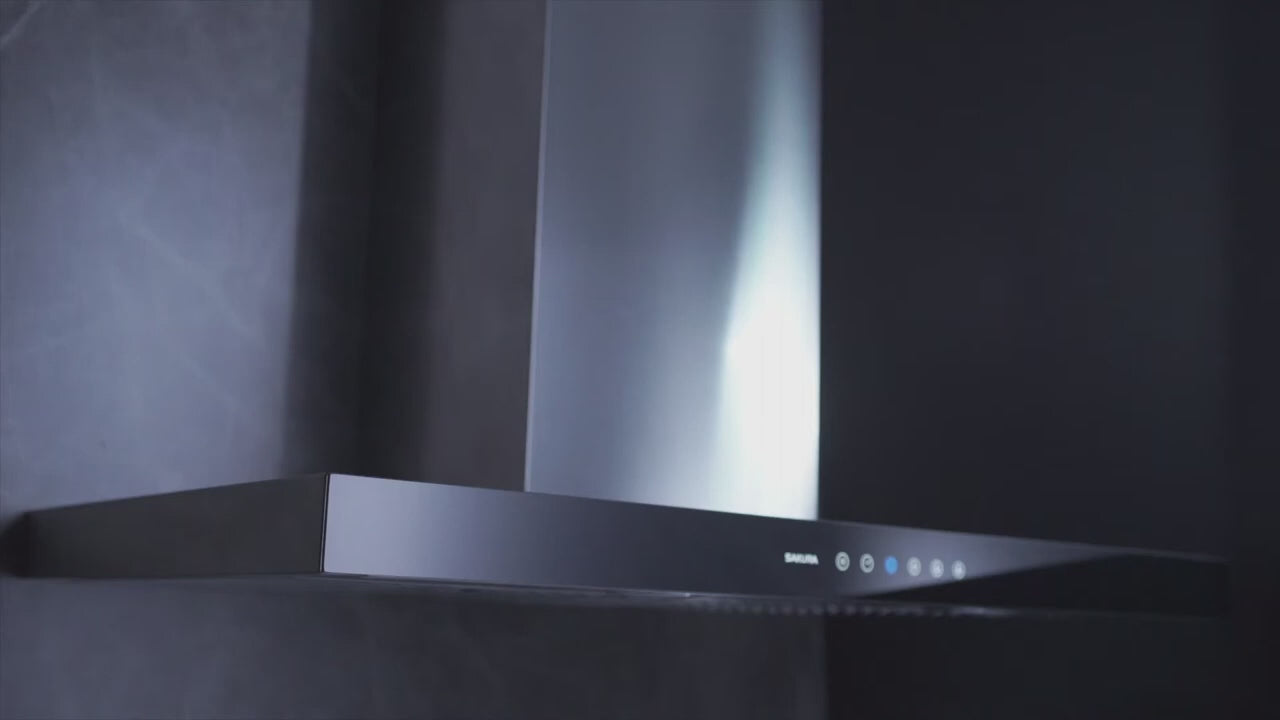

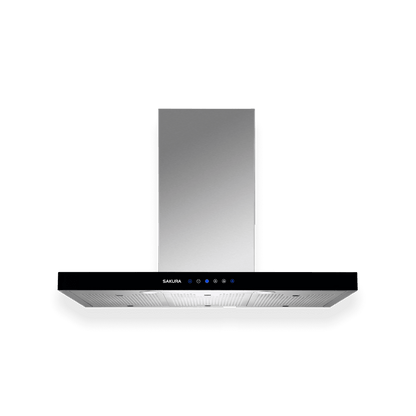

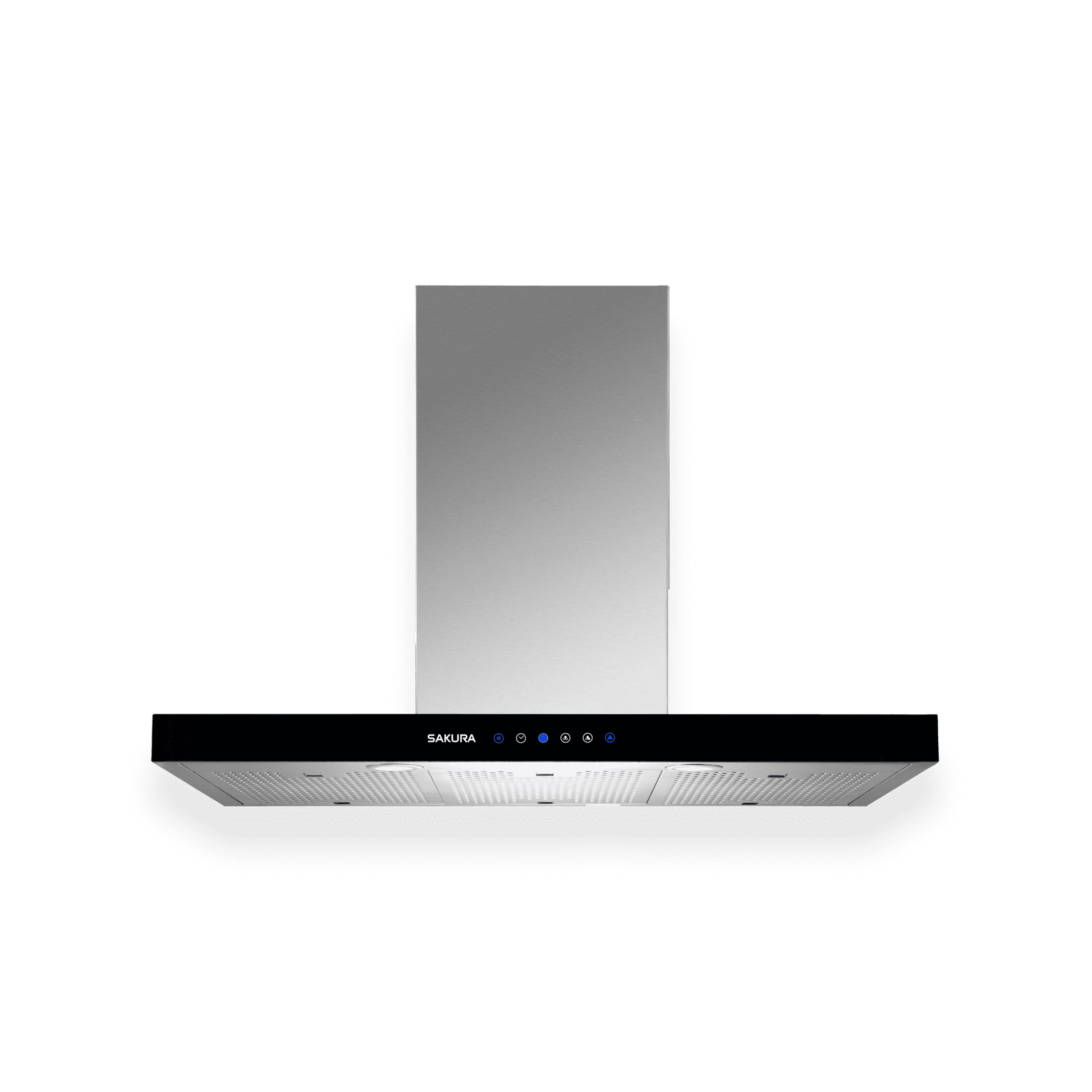

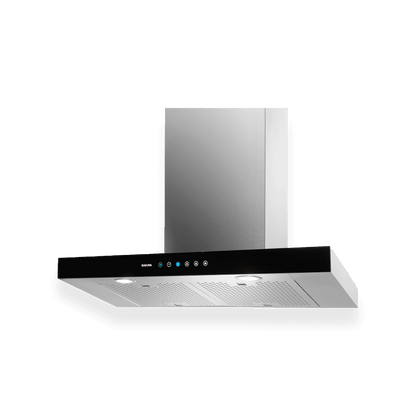

Sakura M-3000 30" / 36" Range Hood - Wall Mount Chimney

• Made in Taiwan
• Max 1000 CFM
• Ultra quiet powerful motor provide strong exhaust power
• The direct suction design has high efficiency, which can effectively pressurize the oil fume and discharge it outside to ensure fresh air

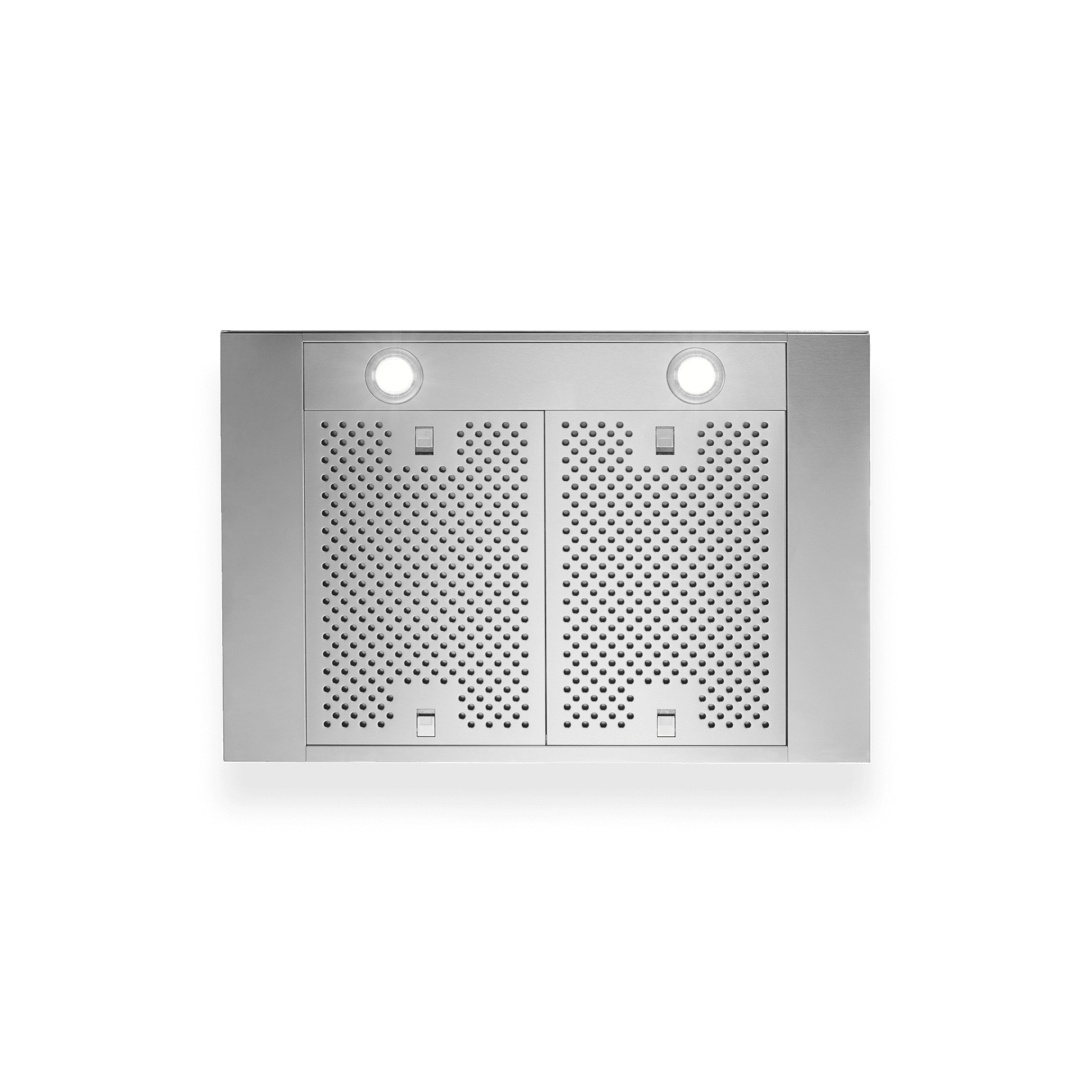

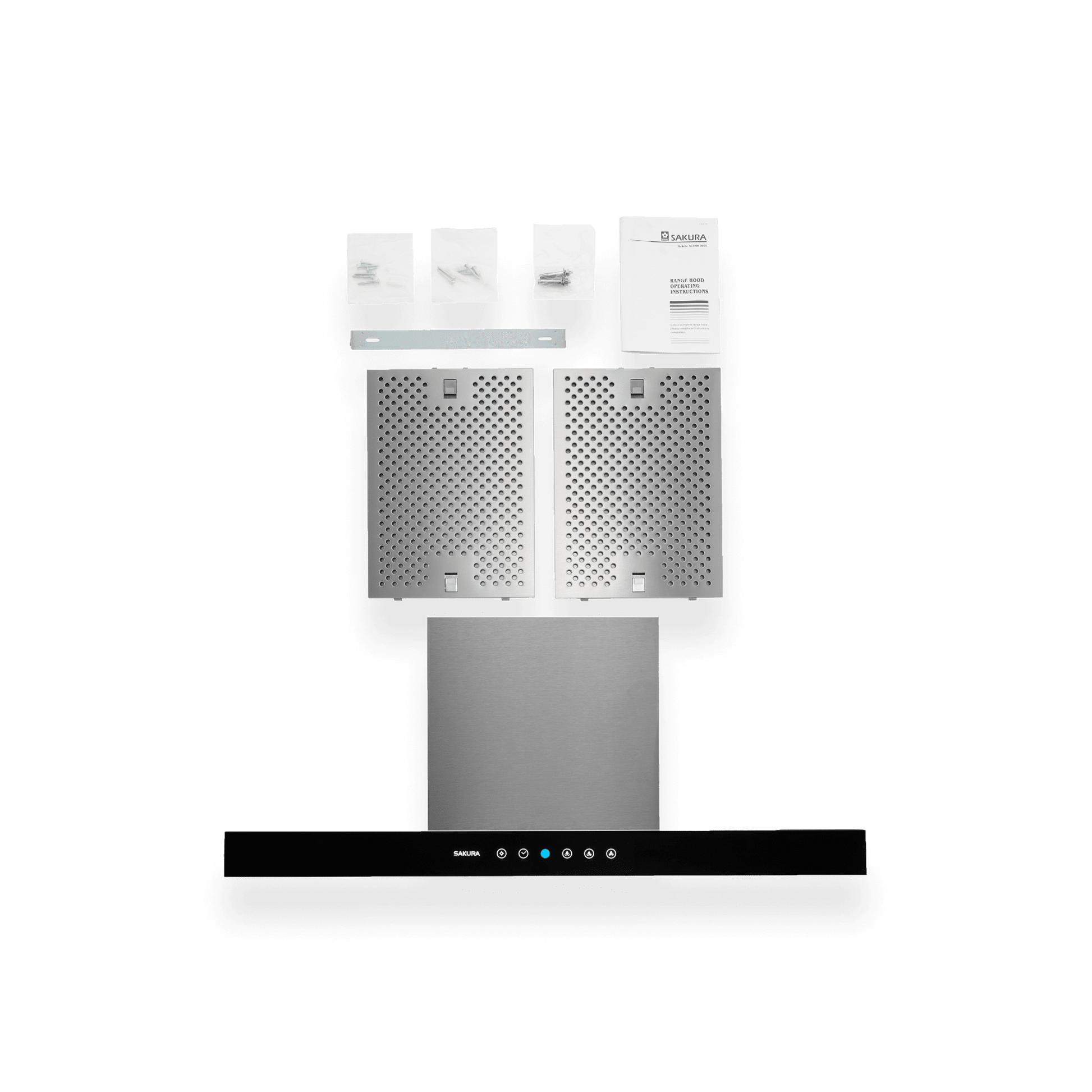

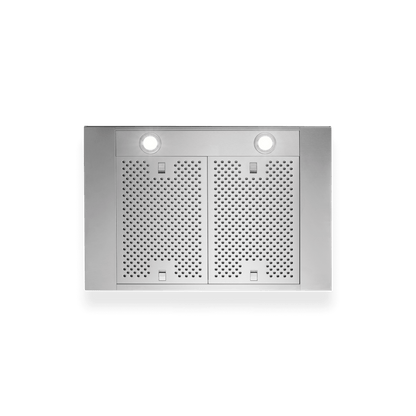

• Detachable beehive stainless filter system, dishwasher safe and easy to clean

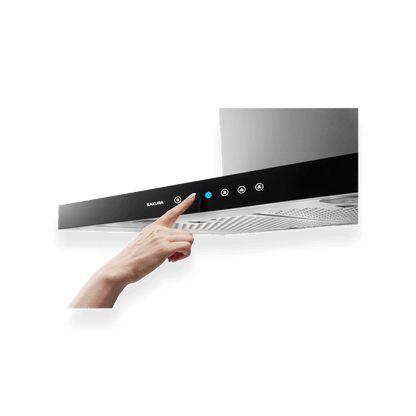

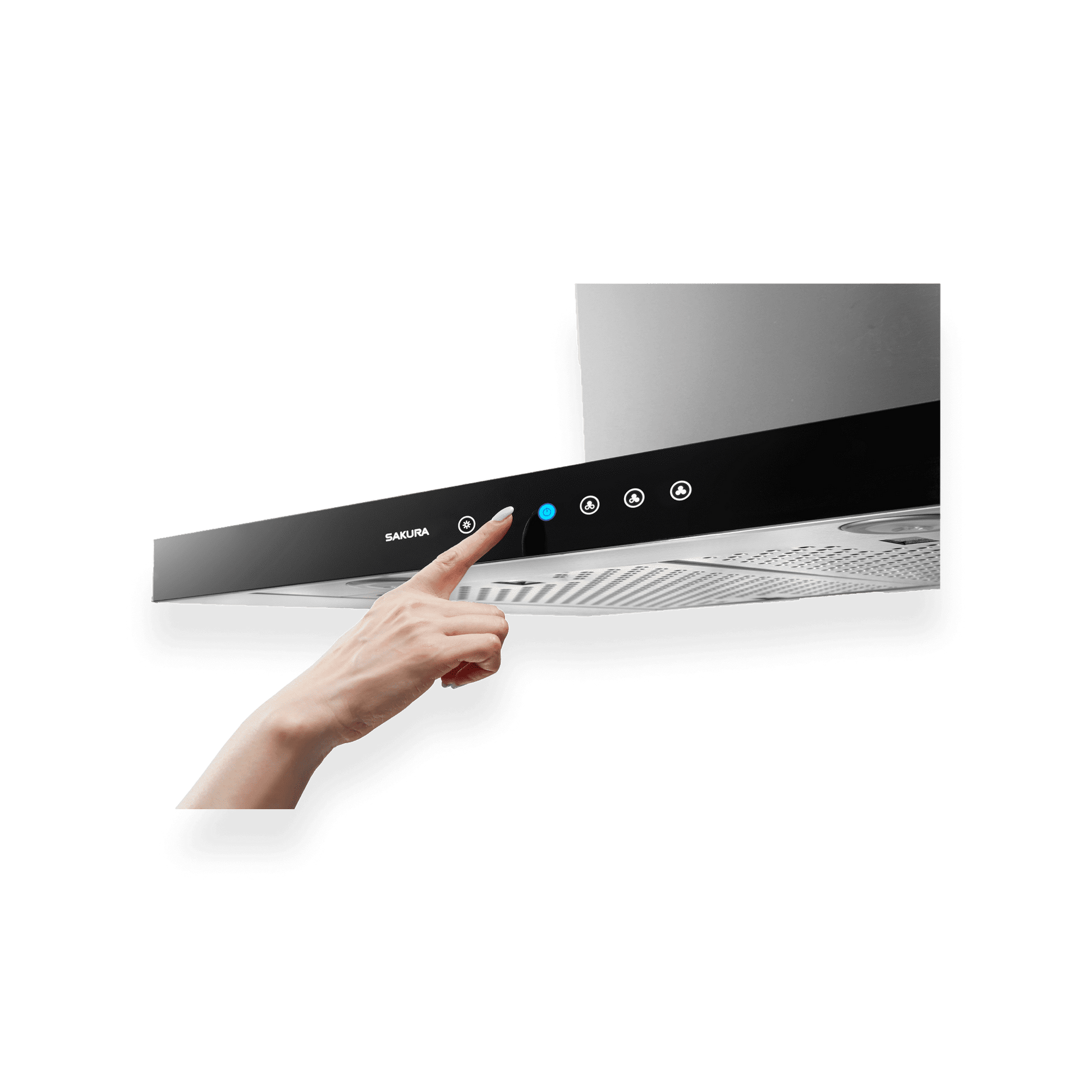

• Stylish touch screen control with 3 speeds and LED display design
• 10 minutes timer delay, taking out the rest of the smoke completely
• Dual LED lighting design, elegant and energy saving

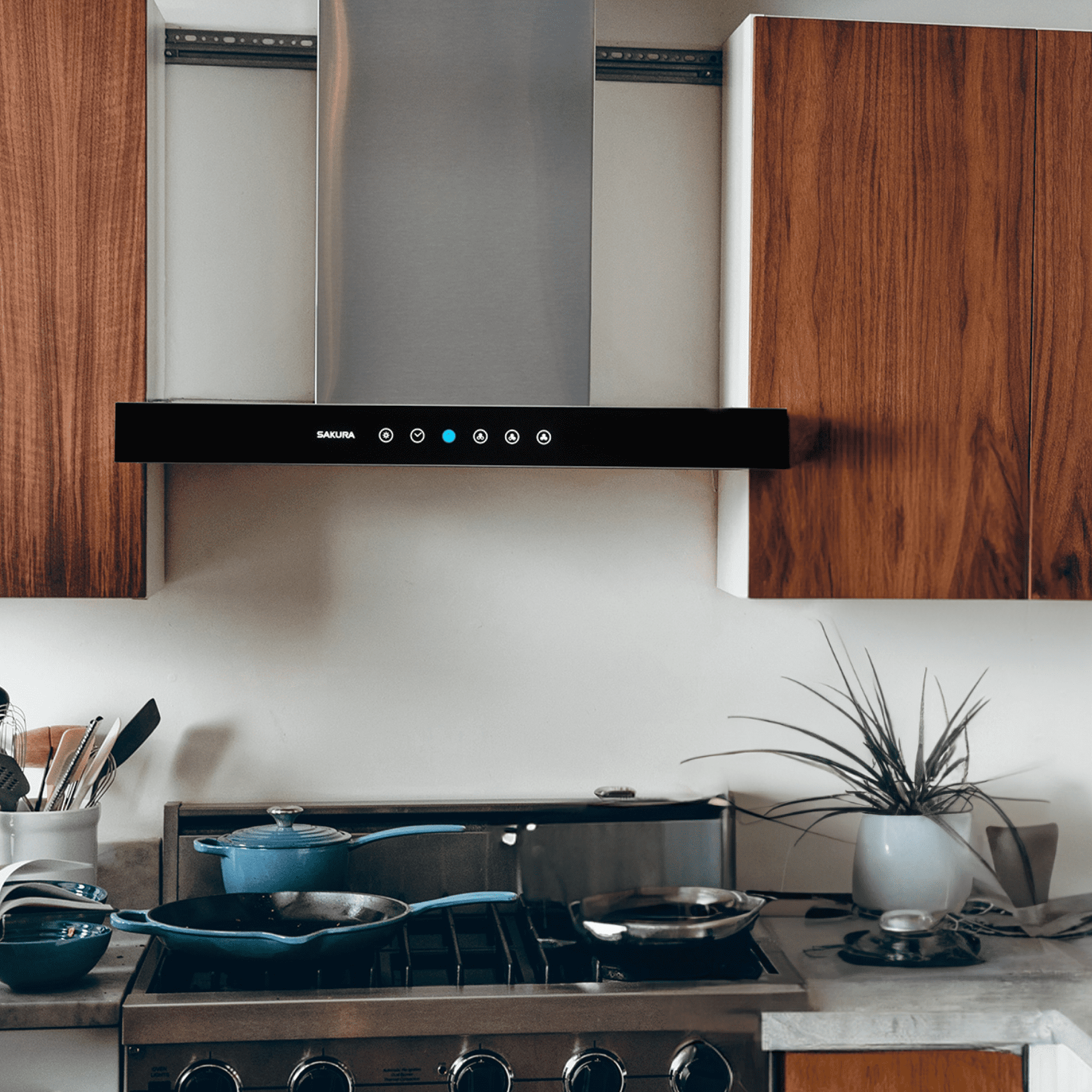

• Available for built-in or wall-mounted design
• The flue height can be adjusted to fit up to 8' or 9' ceilings

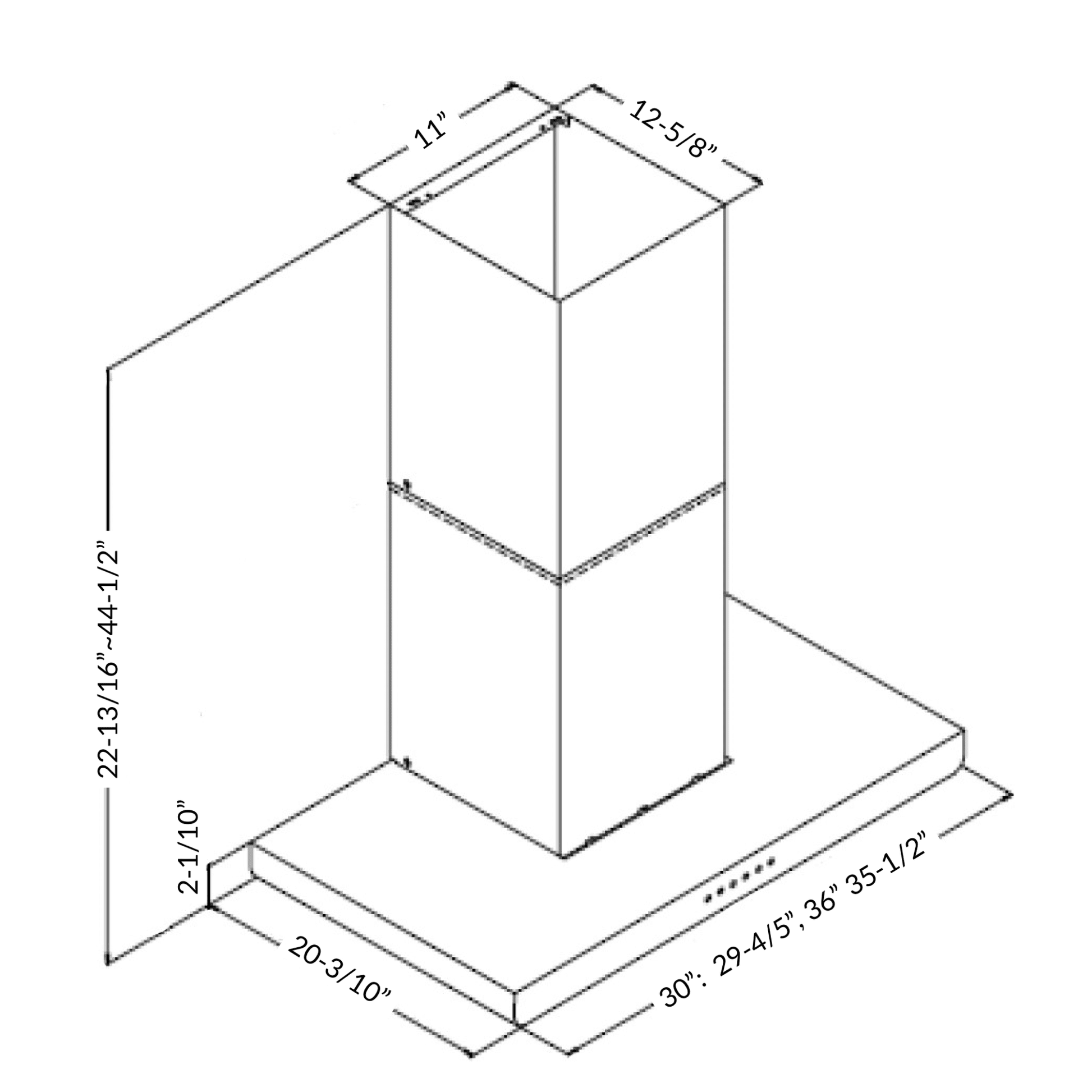

30" Model - 29.8" W x 20.3" D x 2.1" H

36" Model - 35.5" W x 20.3" D x 2.1" H

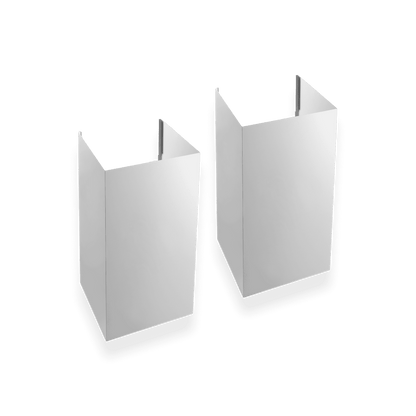

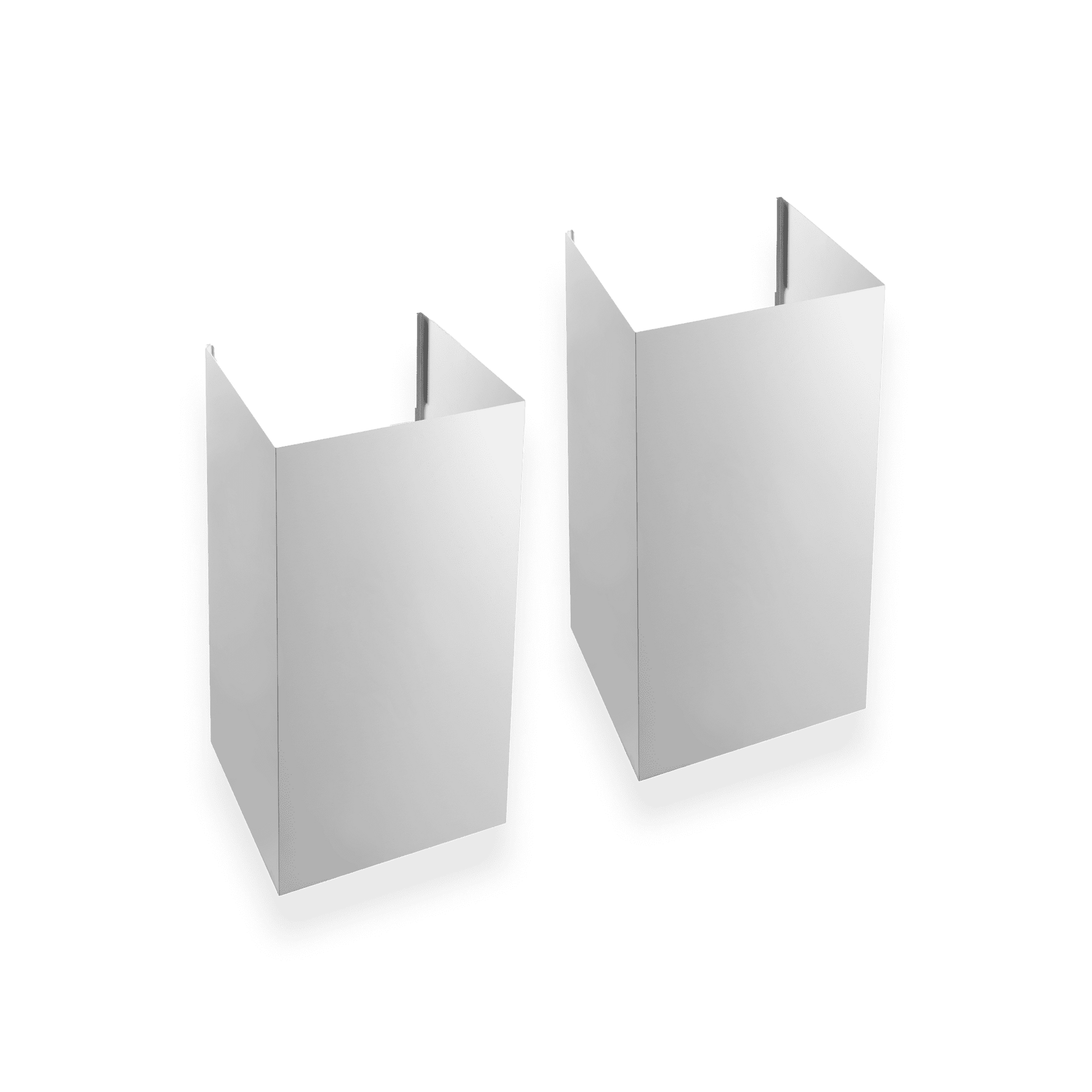

Adjustable Flue Set: 12.6" W x 11" D x 23.6~46.34" H

Net Weight 17-19.5kg

Gross Weight 23-26kg

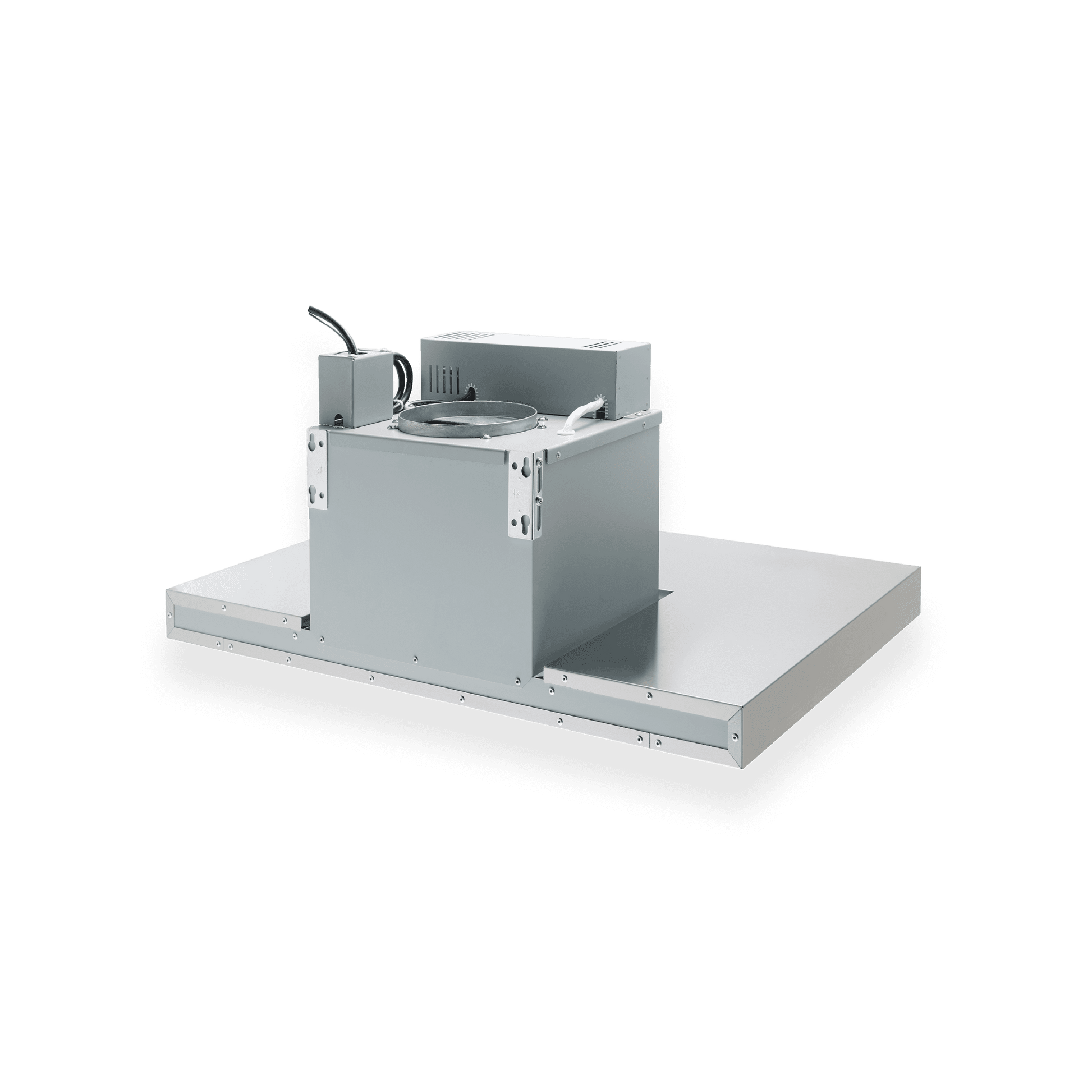

Motor: Single AC motor

Filter: Stainless Beehive Filter

Duct Size: 6"

Illumination: LED 1W*2

Switch Type: Sensor touch screen

Speed: 3 speeds

Noise level: 2 - 5.5 Sones

CFM: 250 - 1000

Power Consumption: 350W

Voltage: 120V~60Hz

Safety Certificate: CSA

Origin: Made in Taiwan

Step 1: Measuring the duct size

Sakura range hoods require a duct size of 6” or larger round opening.

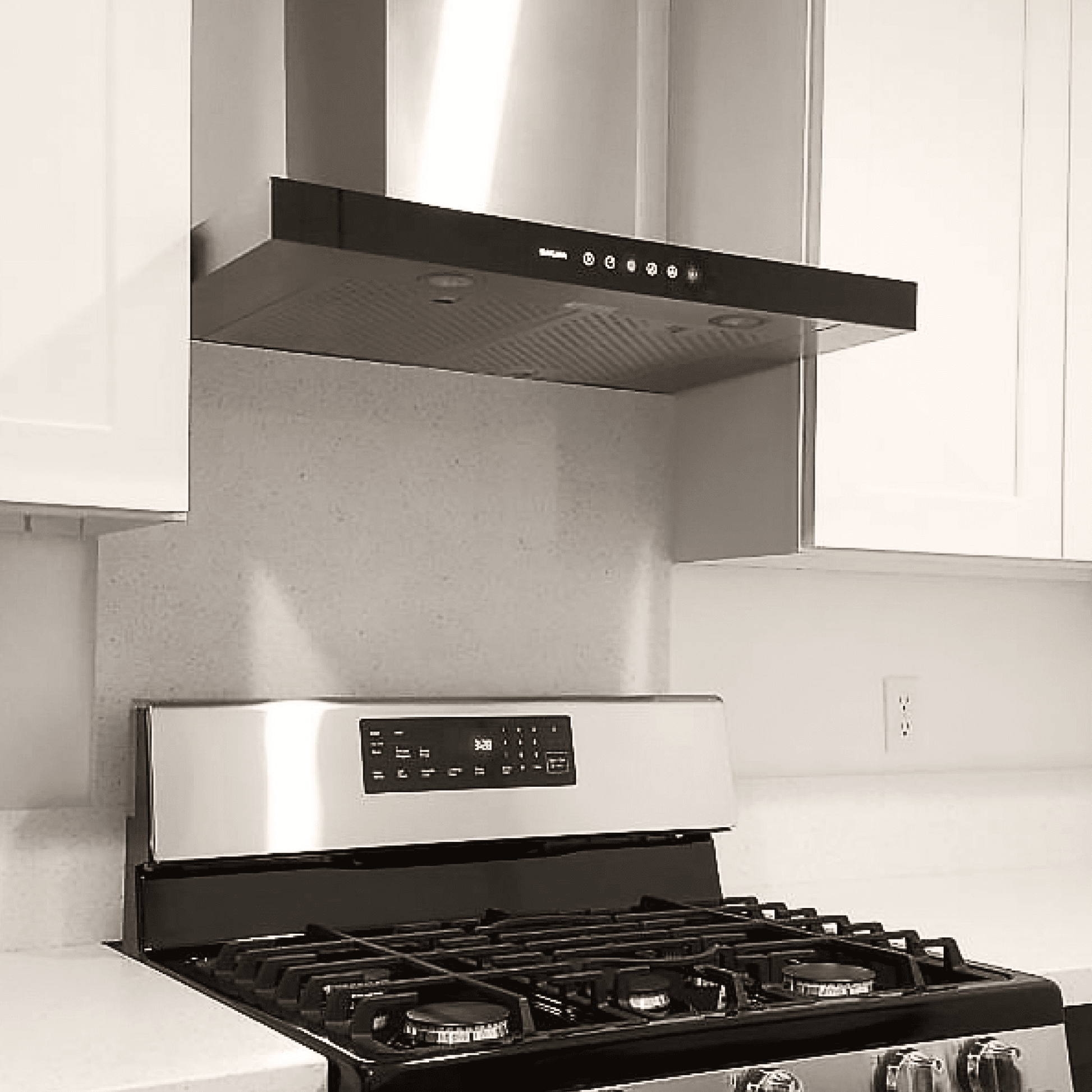

Step 2: Measuring the distance between range hood and countertop

From the bottom of the cabinet, or the top of the range hood, to the countertop.

Distance Requirement from top of hood to the counter top: Gas stove 29", Electric stove 27"

One Year Parts and Five-Year Motor  Warranty

One Happy Kitchen is offering five years limited warranty on range hood products’ motors. from your purchase date, one (1) year warranty on all range hood products and parts and five (5) years limited warranty on motors of One Happy Kitchen range hood products

User manual (English)
