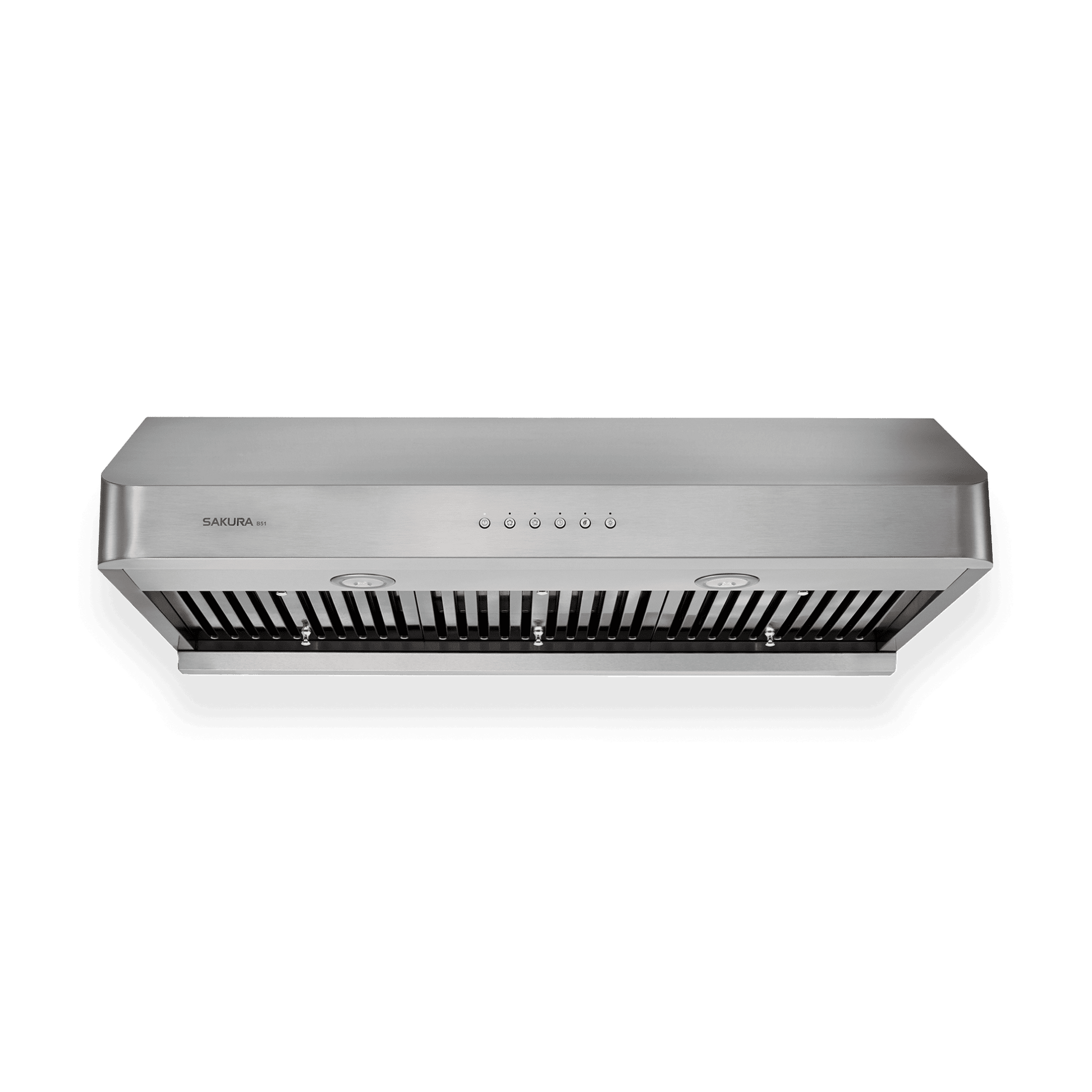

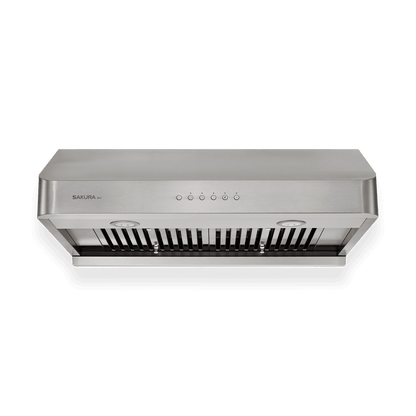

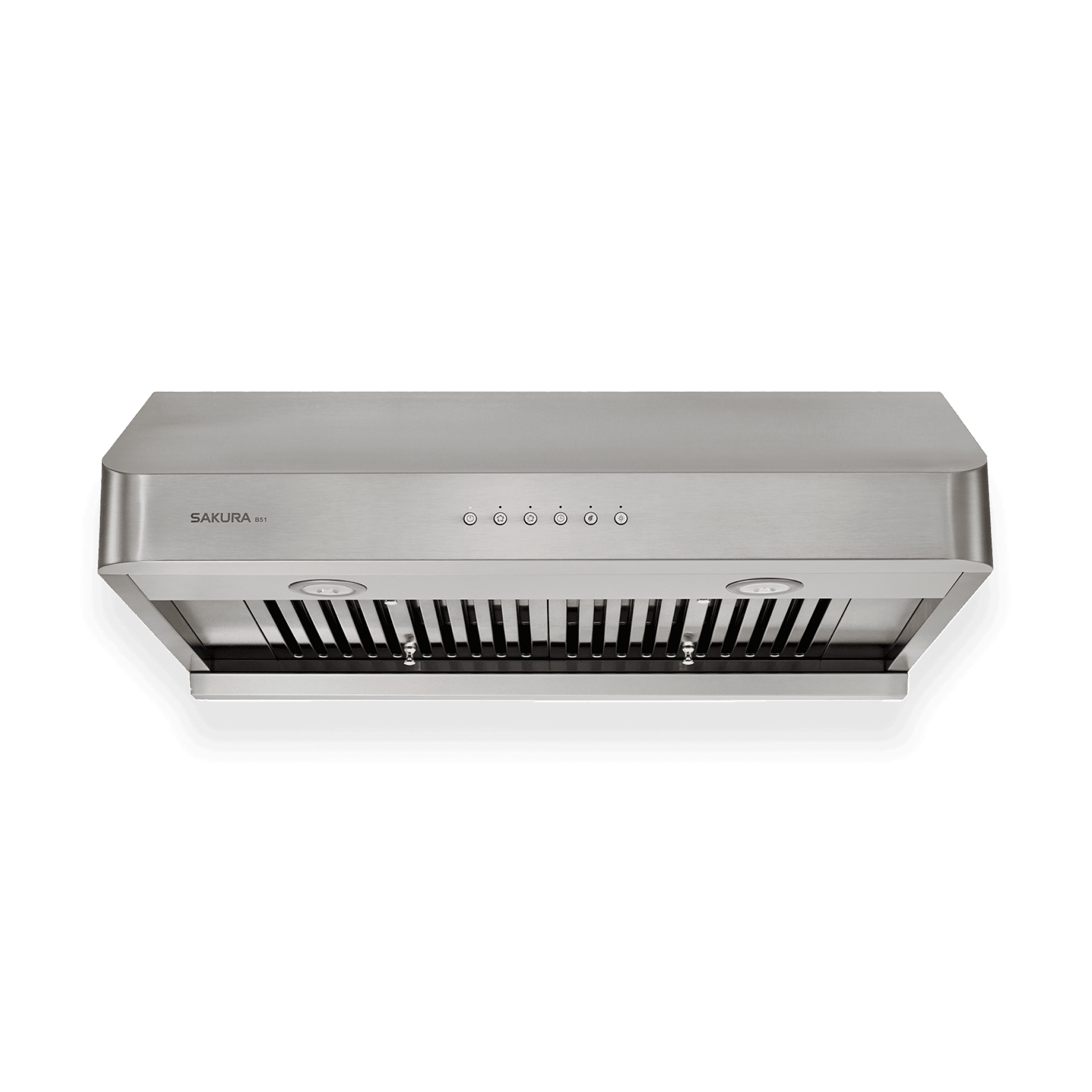

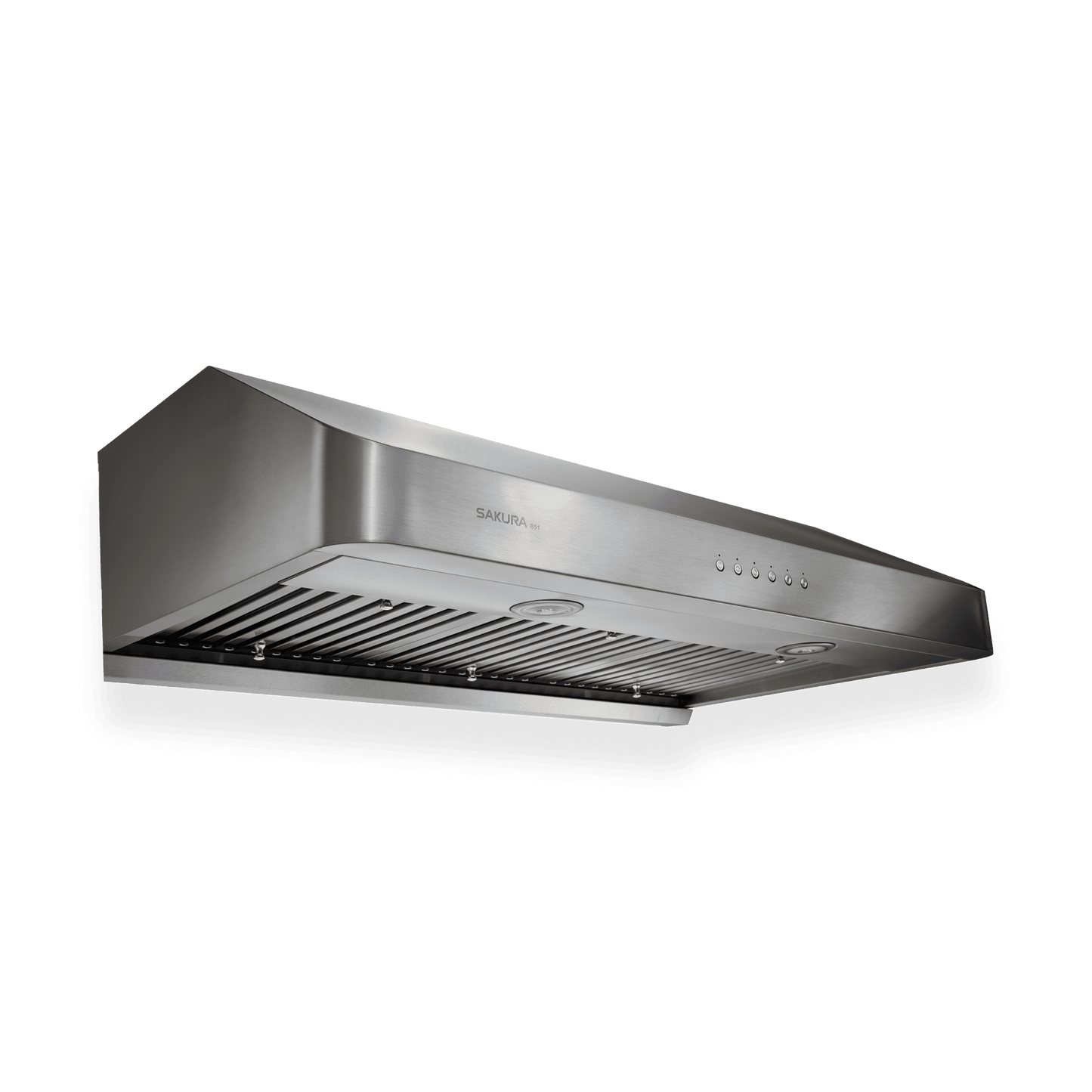

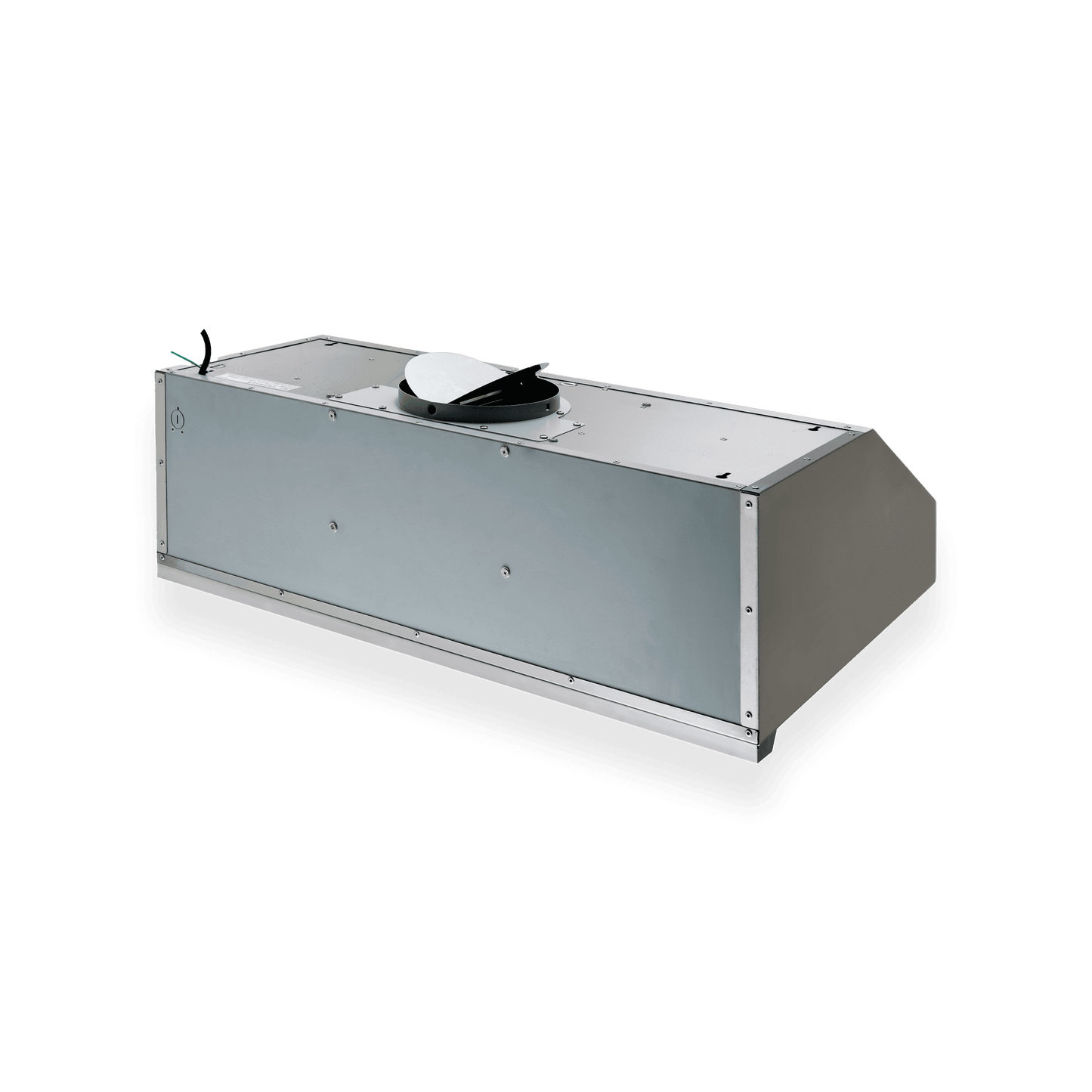

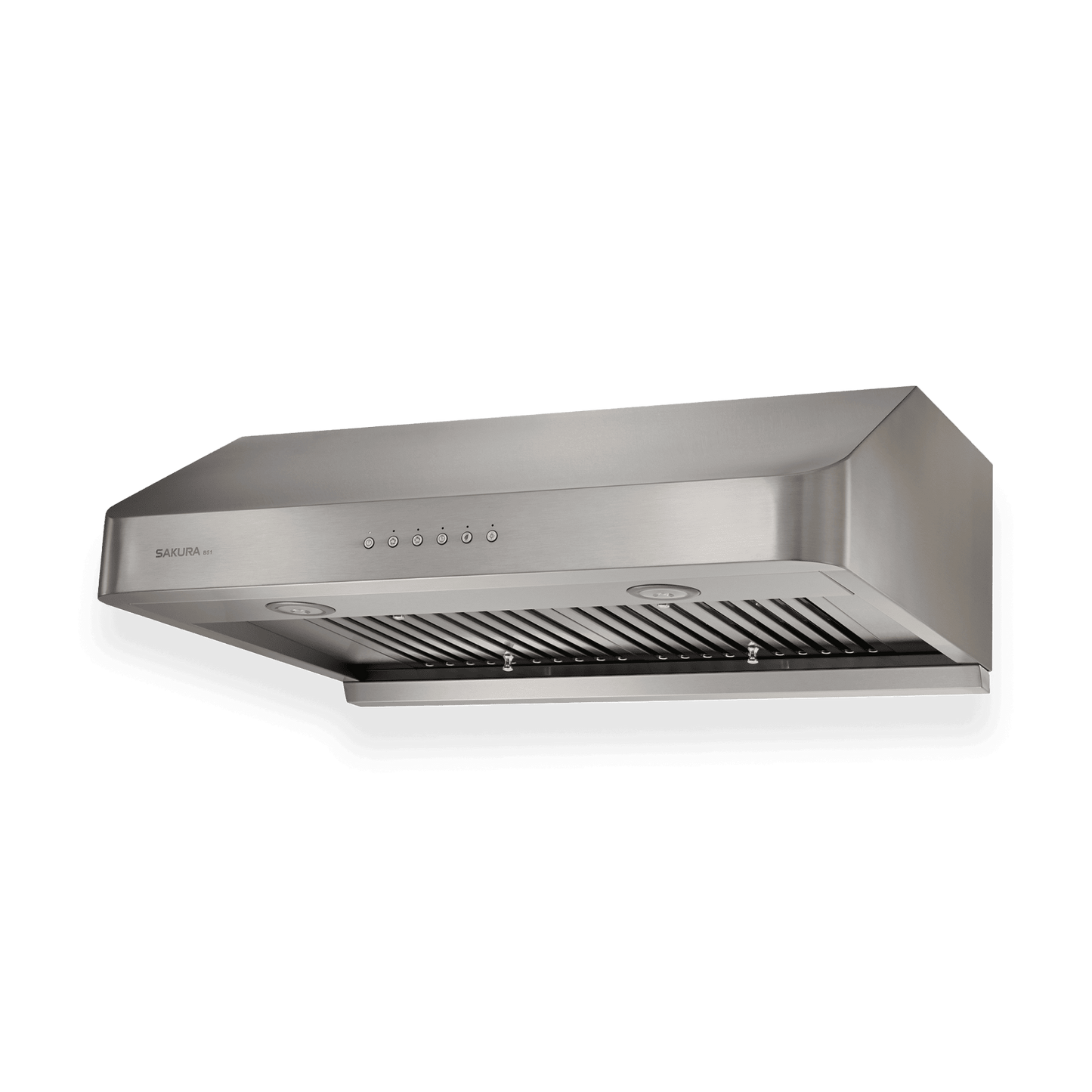

Sakura B-51 30" / 36" Range Hood - Under Cabinet

• Made in Taiwan
• Max 1000 CFM

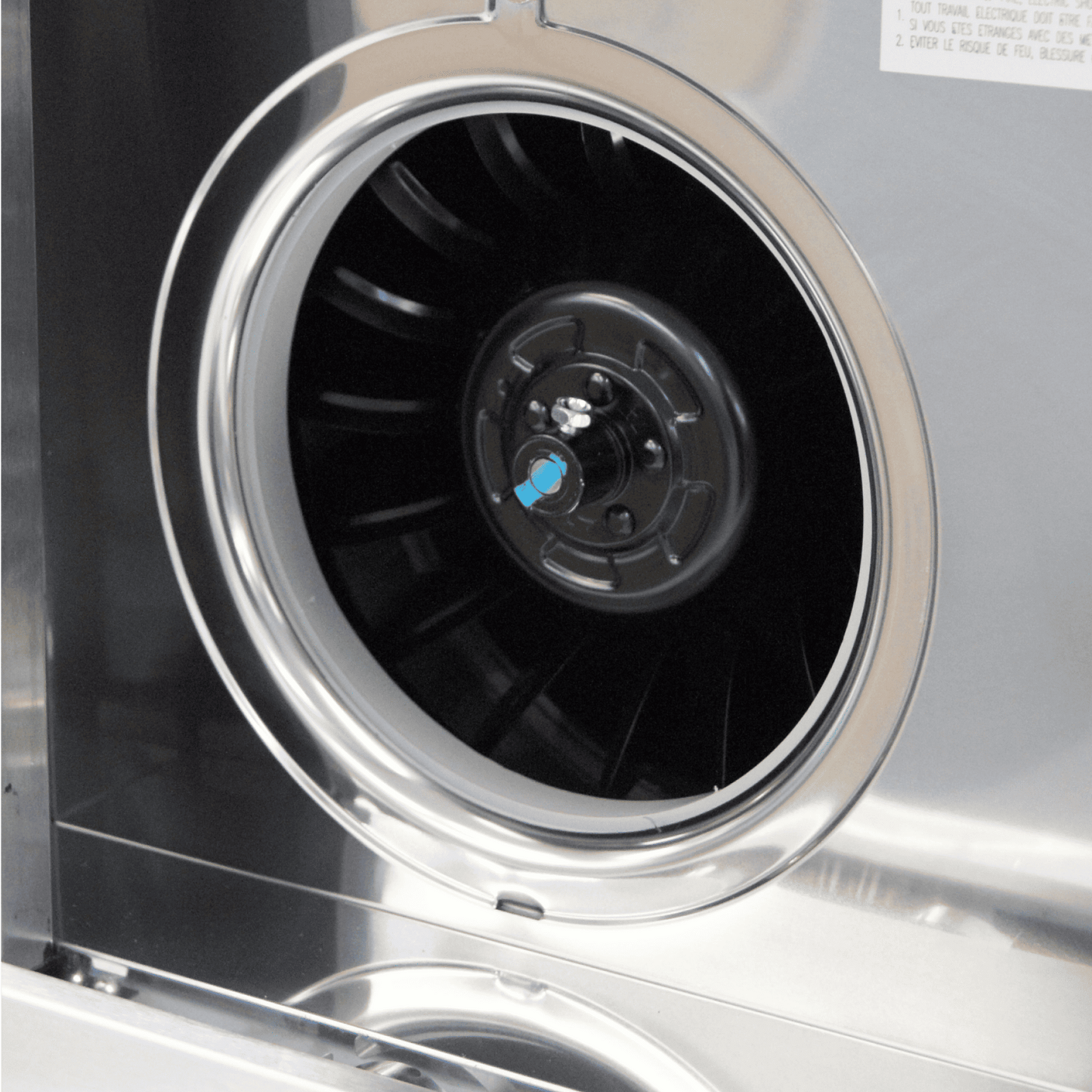

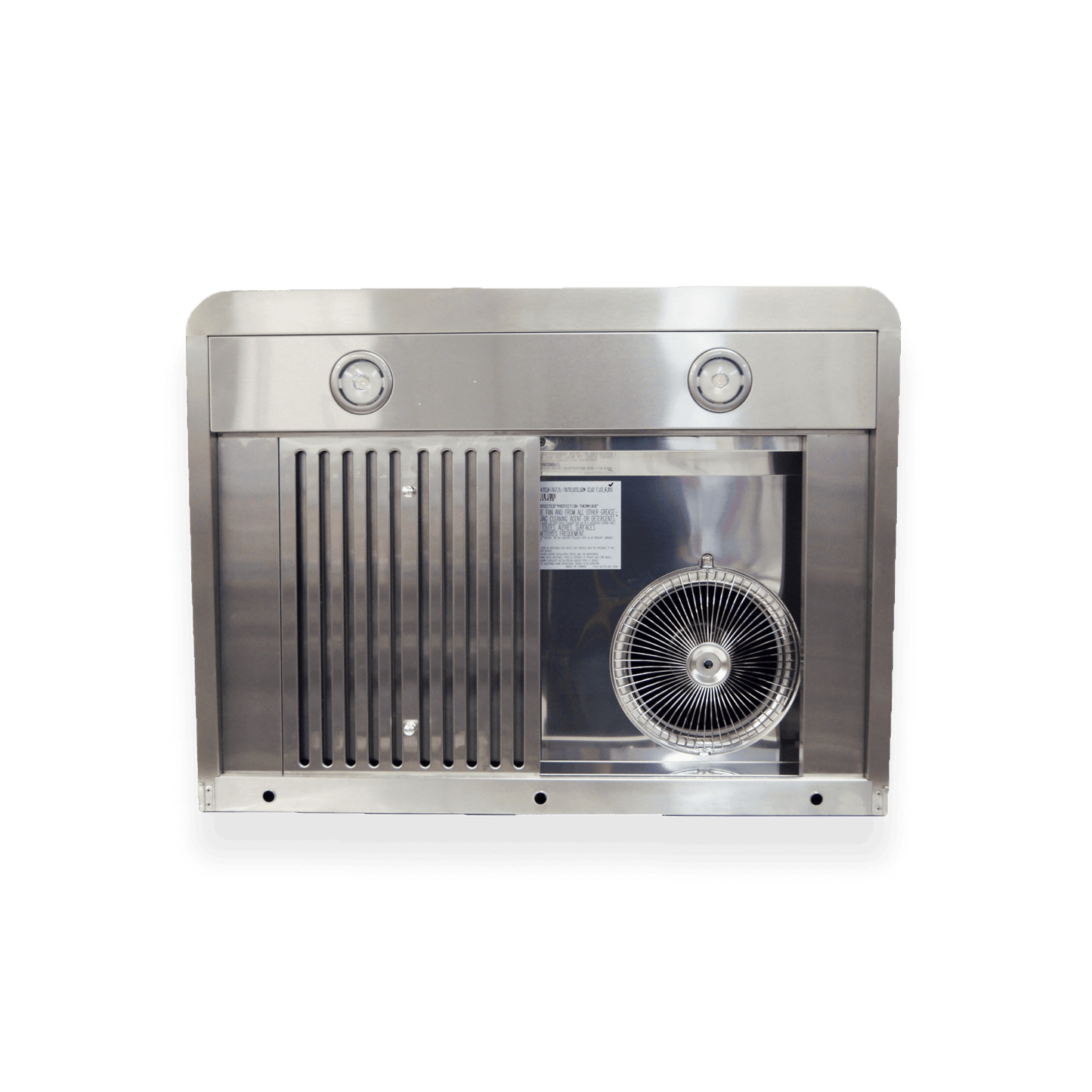

• Two powerful AC motors with Innovative patented exhaust air flow
• 2 speeds metal button control satisfies all cooking requirements
• 30 min delay auto shutoff function
• Intelligent air fresh mode

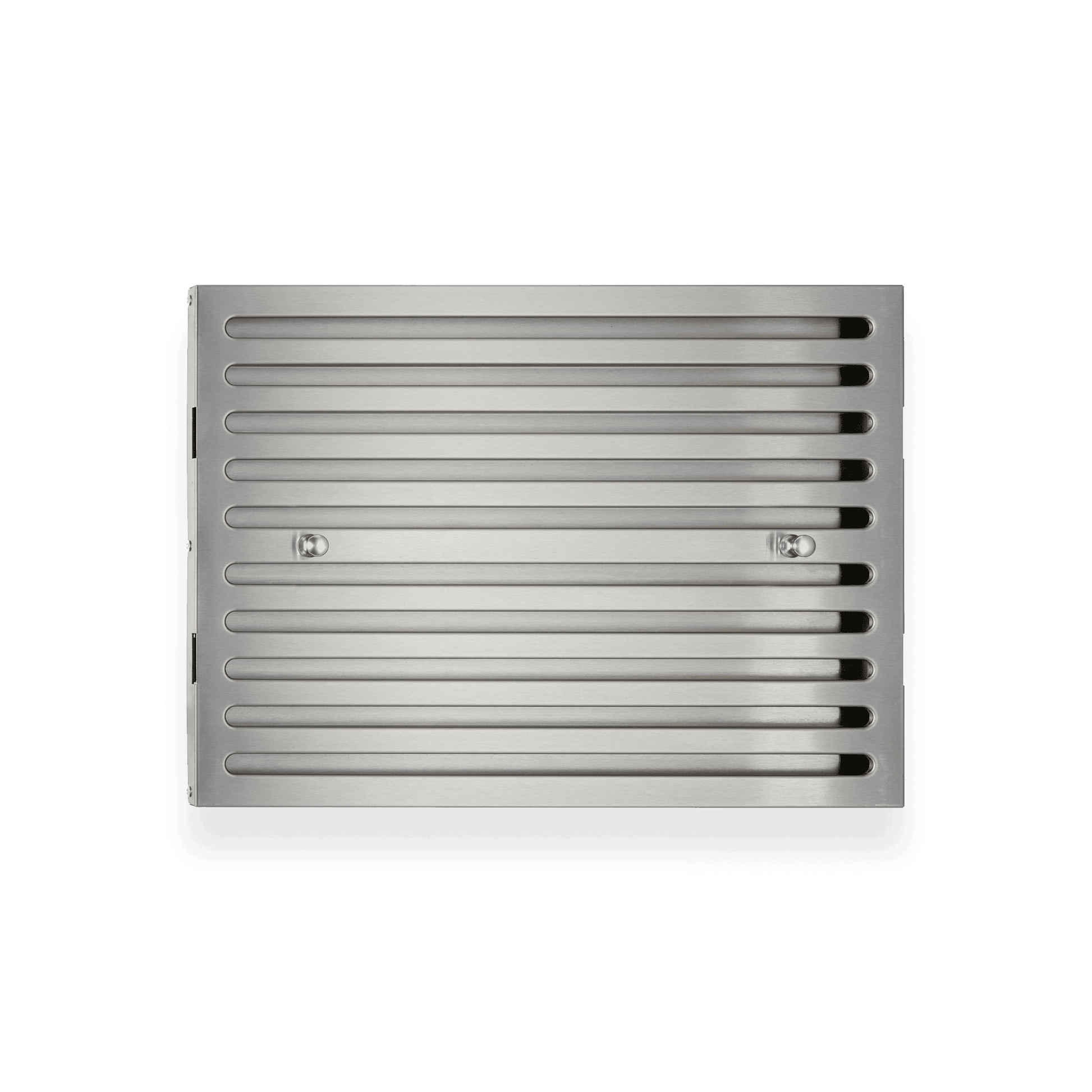

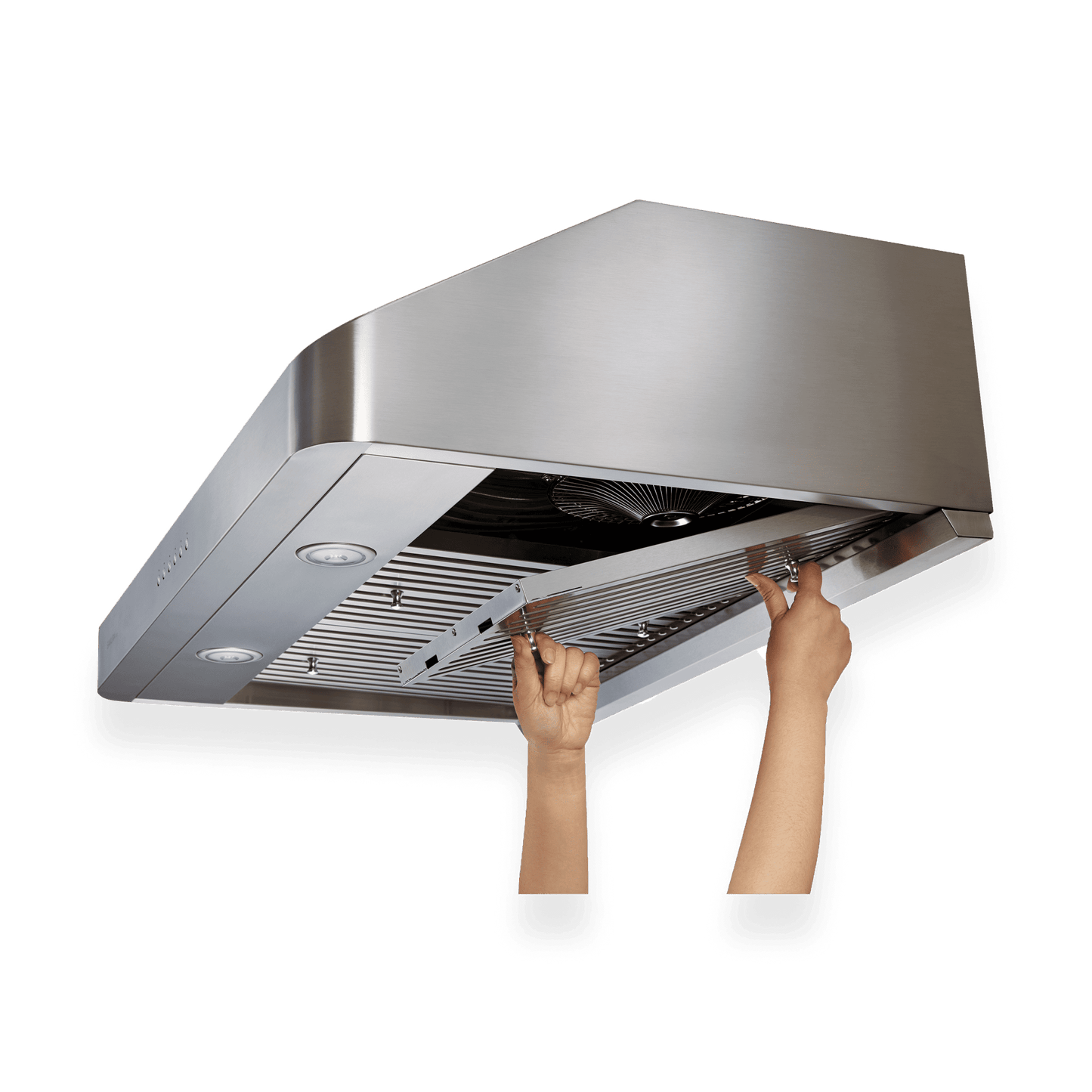

• Baffle filter system, all stainless steel dishwasher safe and easy to clean.
• Dishwasher safe stainless Steel detachable rear oil trapping container
• Dual LED light both bright and save energy

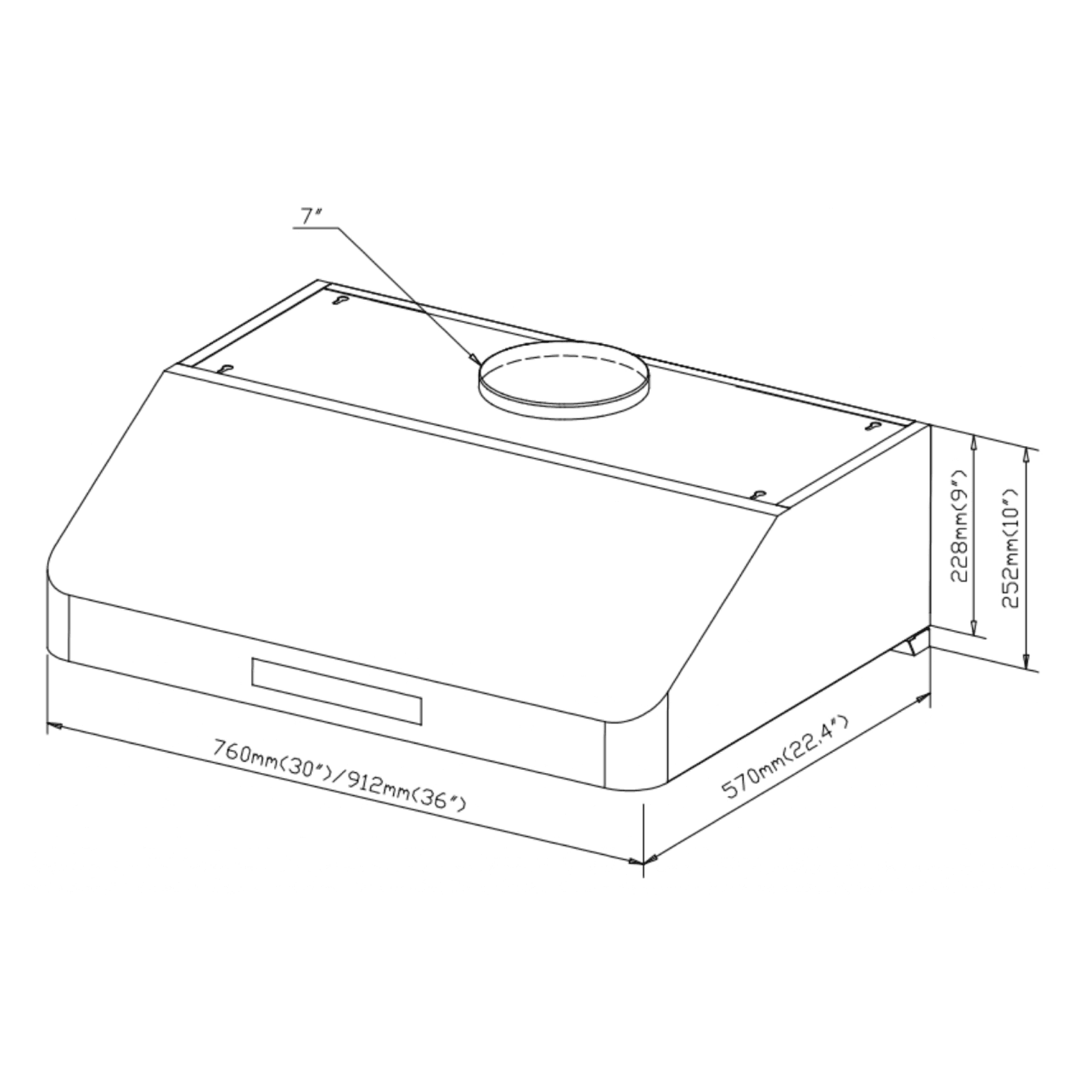

30" Model - 30" W x 22.4" D X 8.9" H

36" Model - 35.8" W x 22.4" D X 8.9" H

Net Weight 20kg

Gross Weight 24kg

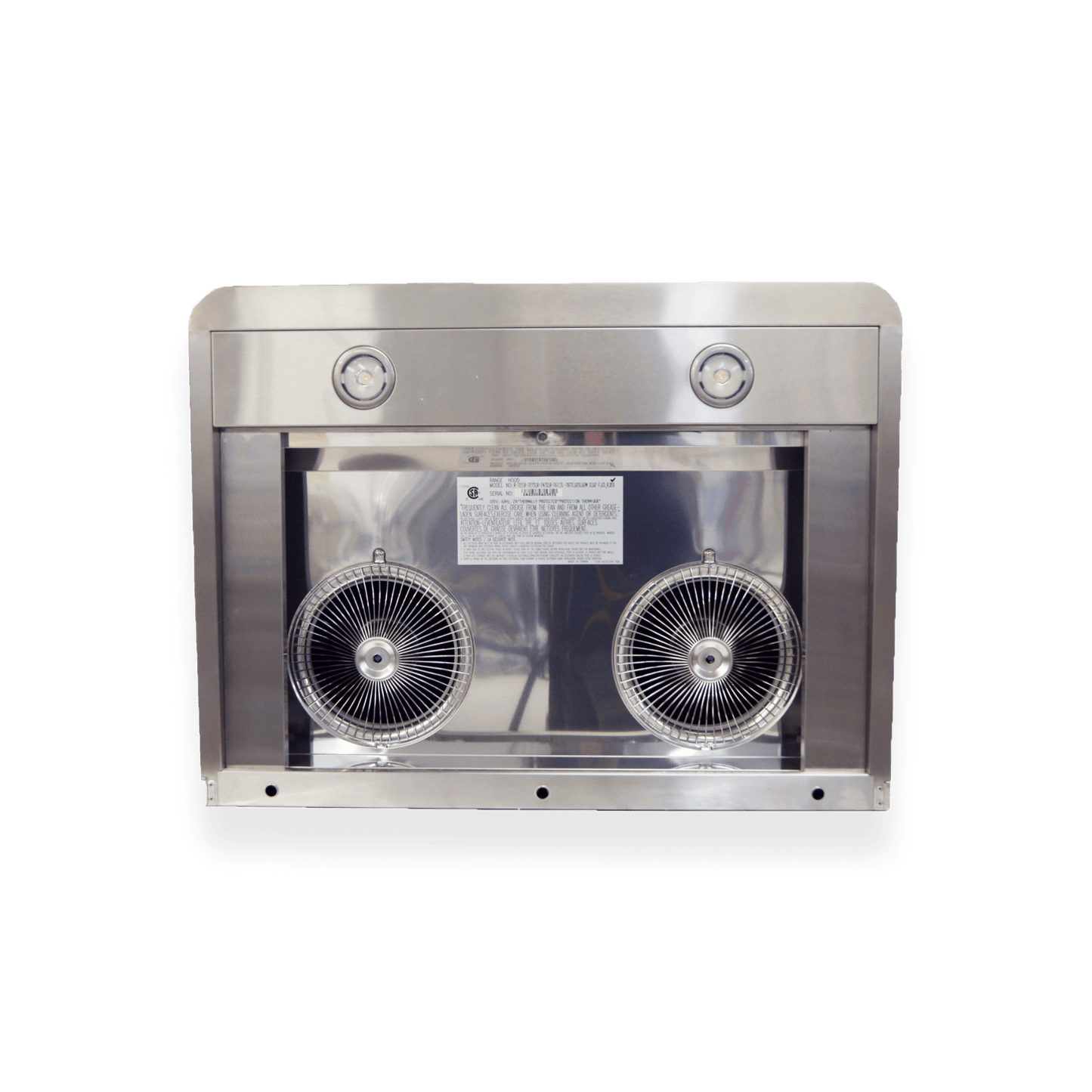

Motor: Twin AC Motors

Filter: Stainless Baffle Filter

Duct Size: 6" / 7"

Illumination: LED 1W*2

Switch Type: Metal Control Buttons

Speed: 2 speeds

Noise level: 3 - 6 Sones

CFM: 250 - 1000

Power Consumption: 180W

Voltage: 120V~60Hz

Safety Certificate: CSA

Origin: Made in Taiwan

Step 1: Measuring the duct size

Sakura range hoods require a duct size of 6” or larger round opening.

Step 2: Measuring the distance between range hood and countertop

From the bottom of the cabinet, or the top of the range hood, to the countertop.

Distance Requirement from top of hood to the counter top: Gas stove 36", Electric stove 34"

One Year Parts and Five-Year Motor  Warranty

One Happy Kitchen is offering five years limited warranty on range hood products’ motors. from your purchase date, one (1) year warranty on all range hood products and parts and five (5) years limited warranty on motors of One Happy Kitchen range hood products

User manual (English)
